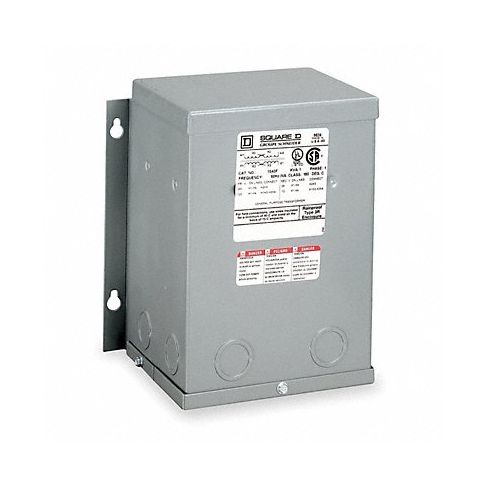

Transformer 120/240VAC 16/32VAC 3kVA MPN:3S46F
Free Shipping
In Stock
The Square D Buck Boost Transformer is a versatile solution for protecting electrical equipment from damage caused by fluctuating voltages. Its buck-boost feature enables users to reduce or increase line voltage, ensuring optimal performance for connected devices. Perfect for use in induction motors, air conditioning systems, lighting installations, and heating systems, this transformer delivers stable power that enhances reliability and safety. With a 3 kVA VA rating and interchangeable primary and secondary lead wires, it offers flexible configuration options to meet unique needs. The compact design makes it easy to install in various settings, making the Square D Buck Boost Transformer an ideal choice for professionals and homeowners alike.
Top product features:
- Buck-boost feature: Protects connected equipment from damage by reducing or raising line voltage
- Interchangeable primary and secondary lead wires: Offers flexible configuration options
- Compact design: Easy to install in various settings
Top product applications:
- Protecting sensitive electrical equipment from voltage fluctuations in industrial settings
- Regulating power for lighting installations in commercial spaces
- Operating small appliances and devices in remote locations where standard voltage is not available
Technical Specifications
- Item - Transformer Buck Boost Transformer
- Input Voltage - Transformer 120V AC, 240V AC
- Output Voltage - Transformer 16V AC, 32V AC
- VA Rating - Transformer 3 kVA
- Phase - Electrical 1
- Hz - Electrical 60 Hz
- Mounting - Transformer Wall
- Outdoor Rated - Transformer Yes
- Temp. Rise 115 Degrees C
- Enclosure Rating NEMA 3R
- IP Rating 54
- Color Gray
- Enclosure Finish Powder Coated
- Height 14.5 in
- Standards carrying cULus Label, CSA Certified via UL, NEMA ST-20, UL Listed
- Depth 6.5 in
- Width 8.7 in
- Knockout Size - Transformer 3/4 in, 1 in
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 3S46F
- MPN: 3S46F
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504320000
- GDS Category Name: Buck Boost Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121002
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Power supply transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC Category: Transformers
