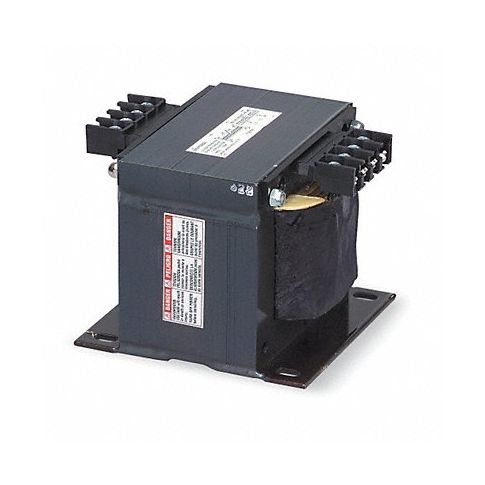

Control Transformer 1kVA 7.63 in H MPN:9070T1000D20

Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays.

Technical Specifications

• Item - Transformer Control Transformer
• Input Voltage - Transformer 208V AC, 230V AC, 460V AC
• Output Voltage - Transformer 120V AC
• VA Rating - Transformer 1 kVA
• Protective Device None
• Enclosure Style - Transformer Open
• Mounting - Transformer Foot
• Phase - Electrical 1
• Hz - Electrical 50 Hz, 60 Hz
• Temp. Rise 55 Degrees C
• Enclosure Finish No Finish
• Height 7.63 in
• Depth 6.38 in
• Width 9.0 in
• Standards CE Marked, CSA Certified, NOM Certified, UL Listed
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 9070T1000D20
• MPN: 9070T1000D20

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8504314065
• GDS Category Name: Control Transformers
• GDS Family Name: Transformers
• GDS Segment Name: Electrical
• UNSPSC: 39121001
• UNSPSC Class ID: 10
• UNSPSC Commodity Name: Power conditioning equipment
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Distribution power transformers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
