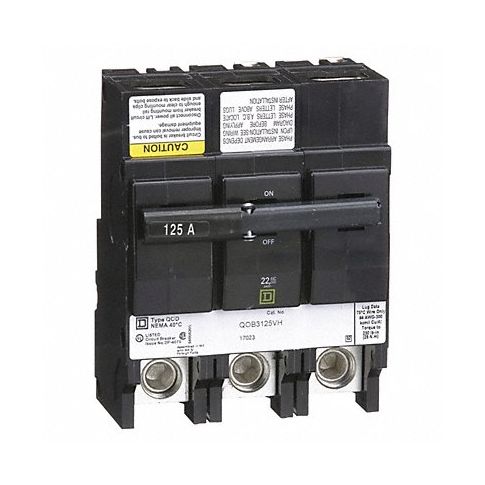

Circuit Breaker 125A Bolt On 120/240V 3P MPN:QOB3125VH

Discount: See in Cart
Free Shipping
In Stock
Brand: Square D
Part #: QOB3125VH
UPC: 785901065470
SKU
226-CXG-2DM83
$2,745.79
Circuit Breaker 125A Bolt On 120/240V 3P

Introducing Square D's QOB series miniature circuit breakers - the ultimate solution for managing electrical power in your home or business! With a bolt-on design that ensures stability and high interrupting capacity, these circuit breakers are perfect for use in NQOD and NQ panelboards or interiors. Their lug orientation allows for easy wiring through bus bars, eliminating the need for pigtail wires and helping to organize your load center. Boasting a 125A amperage rating, these circuit breakers are ideal for managing higher-capacity electrical needs, providing you with the peace of mind that comes from knowing your electrical system is always operating at its best. Whether you're looking to upgrade your existing panel or simply add additional circuit protection, Square D's QOB series miniature circuit breakers have you covered - so why wait? Order yours today and experience the difference!

Top product features:

  • Bolt-on design for stability
  • High interrupting capacity for reliable performance
  • Lug orientation for easy wiring

Top product applications:

  • Use in NQOD and NQ panelboards or interiors for stable electrical connections
  • Circuit protection for higher capacity electrical needs in homes or businesses
  • Improved organization of electrical wiring in load centers
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.

Technical Specifications

  • Item Miniature Circuit Breaker
  • Amps 125 A
  • AC Voltage Rating 120/240V AC
  • Circuit Breaker Type High Interrupting Capacity
  • Number of Poles 3
  • DC Voltage Rating Not Rated
  • Circuit Breaker Actuator Paddle
  • Circuit Breaker Mounting Style Bolt On
  • Compatible Panelboard/Load Center Series QO
  • Phase Three
  • Series QOB
  • Max. AIR Rating 22kA at 120/240V AC
  • For Use With Square D NQOD Panelboards
  • Terminal Connection Lug
  • Frame Size 100A/QO
  • Length 5.72 in
  • Width 4.5 in
  • Depth 4.9 in
  • Min. Operating Temp. 104 Degrees F
  • Max. Operating Temp. 104 Degrees F
  • Min. Wire Size 4 AWG
  • Max. Wire Size 300 MCM
  • Standards CSA, UL Listed

Manufacturer Details

  • Manufacturer: Square D
  • Condensed Mfg Number: QOB3125VH
  • MPN: QOB3125VH

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8536200020
  • GDS Category Name: Miniature Circuit Breakers
  • GDS Family Name: Distribution
  • GDS Segment Name: Electrical
  • UNSPSC: 39121601
  • UNSPSC Class ID: 16
  • UNSPSC Commodity Name: Circuit protection devices and accessories
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Circuit breakers
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
