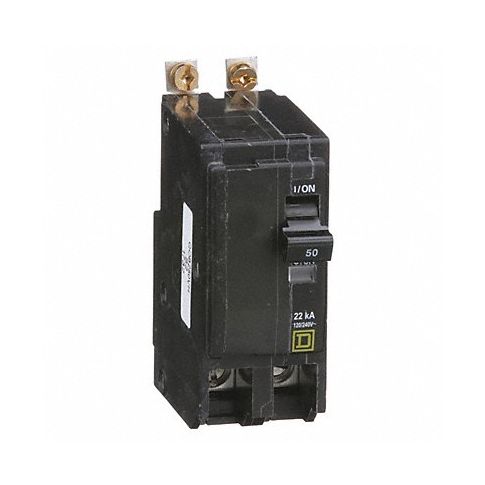

Circuit Breaker 50A Bolt On 120/240V 2P MPN:QOB250VH
Free Shipping
In Stock
Our Square D Circuit Breaker is the perfect solution for protecting electrical systems in your home or business from damage caused by short circuits, overloads, and ground faults. With a high interrupting capacity of 50 amps and designed to withstand both 120 and 240 volts, this circuit breaker provides reliable protection against electrical hazards. Its bolt-on design ensures stability in NQOD and NQ panelboards or interiors, while the lug orientation allows for easy wiring through bus bars, eliminating the need for pigtail wires. Use it to protect lights, fans, motors, and other appliances from damaging power surges, making it ideal for a variety of residential, commercial, and industrial applications. Invest in peace of mind with our Square D Circuit Breaker today!
Top product features:
- High interrupting capacity of 50 amps
- Designed to withstand both 120 and 240 volts
- Lug orientation for straight-in wiring through bus bars
Top product applications:
- Home electrical systems for circuit protection
- Commercial and industrial buildings for load management
- Outdoor installations in mobile and temporary power sources
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB250VH
- MPN: QOB250VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
