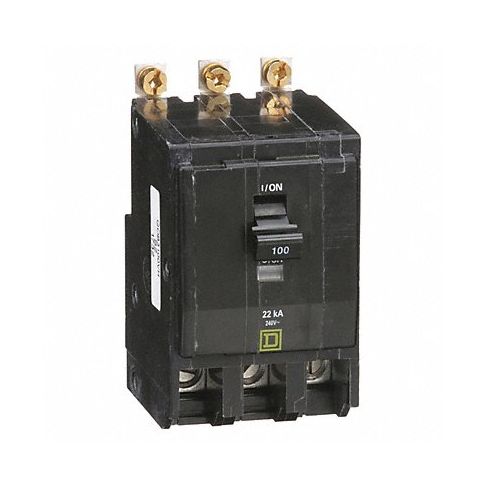

Circuit Breaker 100A Bolt On 120/240V 3P MPN:QOB3100VH
Free Shipping
In Stock
The Circuit Breaker 100A Bolt On 120/240V 3P from Square D is a high-interrupting capacity miniature circuit breaker that is perfect for industrial, commercial, and residential settings. This QOB series circuit breaker is designed to be bolted into place in NQOD and NQ panelboards or interiors, ensuring stability and reliability. It can interrupt currents when low-level faults are detected in the circuit, providing safety and protection for your electrical system. The lug orientation allows for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center. This circuit breaker is ideal for a wide range of applications, including industrial machinery, lighting systems, office equipment, and residential appliances. With its high interrupting capacity and robust construction, the Circuit Breaker 100A Bolt On 120/240V 3P from Square D is an essential component of any electrical system.
Top product features:
- Bolt-on installation for increased stability
- High interrupting capacity for safer use
- Lug orientation for streamlined wiring and organized load centers
Top product applications:
- Protection for residential or commercial electrical systems
- Use in power distribution centers and control panels
- Safe operation of industrial machinery and equipment
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB3100VH
- MPN: QOB3100VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
