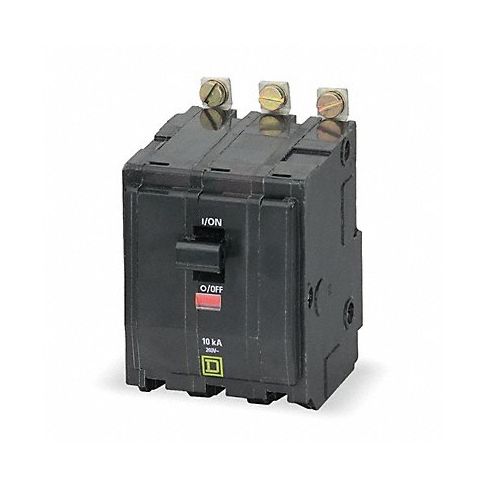

Circuit Breaker 110A Bolt On 120/240V 3P MPN:QOB3110VH
Free Shipping
In Stock
Introducing Circuit Breaker 110A Bolt On 120/240V 3P from Square D - designed for reliability, ease-of-use, and safety in your electrical systems. With a bolt-on design that ensures stability in panelboards or interiors, this high-interrupting capacity circuit breaker detects low-level faults and interrupts currents to protect against potential hazards. Its lug orientation allows for direct wiring through bus bars, eliminating the need for pigtail wires and streamlining your load center. Equipped with 110A amperage rating and a voltage range of 120/240V AC, this circuit breaker is ideal for various electrical applications, including lighting, appliances, machinery, and more. Improve the safety and efficiency of your electrical systems with Circuit Breaker 110A Bolt On 120/240V 3P from Square D.
Top product features:
- Bolt-on design for stability
- High interrupting capacity
- Lug orientation for direct wiring
Top product applications:
- Use in panelboards and interiors for better stability
- Protection against low-level faults in electrical circuits
- Direct wiring through bus bars to simplify circuit wiring
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 110 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.72 in
- Width 4.5 in
- Depth 4.9 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB3110VH
- MPN: QOB3110VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:26pm UTC Category: Distribution
