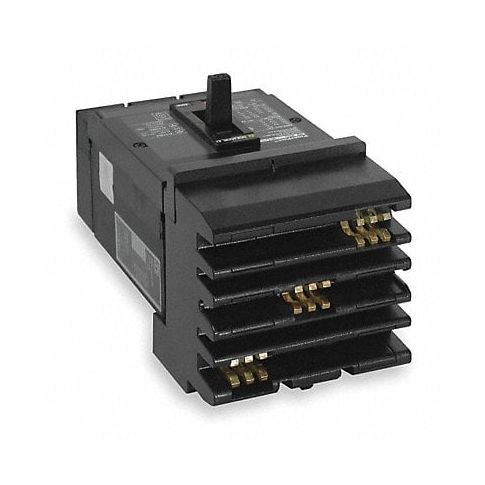

Circuit Breaker 250A 3P 600VAC JG MPN:JGA36250

J-frame Square D molded case circuit breakers are rated up to 250A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, oil and gas, marine, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 250 A
• AC Voltage Rating 600V AC
• Max. AIR Rating 25kA at 240V AC
• For Use With I Line Panelboards
• Series JG
• High Amp Trip Setting 2,500 A
• Low Amp Trip Setting 1,250 A
• Circuit Breaker Type Standard
• Number of Poles 3
• DC Voltage Rating 500V DC
• Terminal Connection Line/Load Lug
• Trip Type Thermal Magnetic
• Phase 3
• Instantaneous Trip Instantaneous
• Phase Connection ABC
• Frame Size 250A/JG
• Circuit Breaker Mounting Style I-Line
• Height 11.48 in
• Width 4.48 in
• Depth 5.87 in
• Min. Wire Size 3 AWG
• Max. Wire Size 350 MCM
• Circuit Breaker Actuator Toggle
• Standards CCC, CE, CSA, IEC, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: JGA36250
• MPN: JGA36250

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
