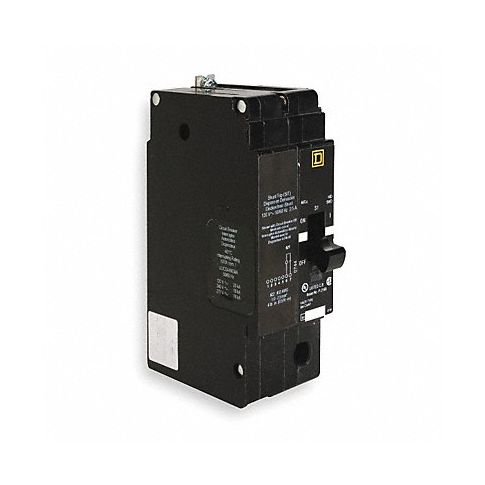

Circuit Breaker 20A Bolt On 277V 1P MPN:EDB14020SA

These EBD and EGB series miniature circuit breakers are bolted into place in NF panelboards, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.

Technical Specifications

• Item Miniature Circuit Breaker
• Amps 20 A
• AC Voltage Rating 277V AC
• Circuit Breaker Type Shunt Trip
• Number of Poles 1
• DC Voltage Rating Not Rated
• Circuit Breaker Actuator Toggle
• Circuit Breaker Mounting Style Bolt On
• Compatible Panelboard/Load Center Series NF
• Phase Single
• Series EDB
• Max. AIR Rating 18kA at 120/240V AC
• For Use With Square D NF Panelboards
• Terminal Connection Lug
• Frame Size 125A/EDB
• Length 5.66 in
• Width 1.96 in
• Depth 4.05 in
• Max. Operating Temp. 104 Degrees F
• Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size 6 AWG
• Standards cULus, IEC
