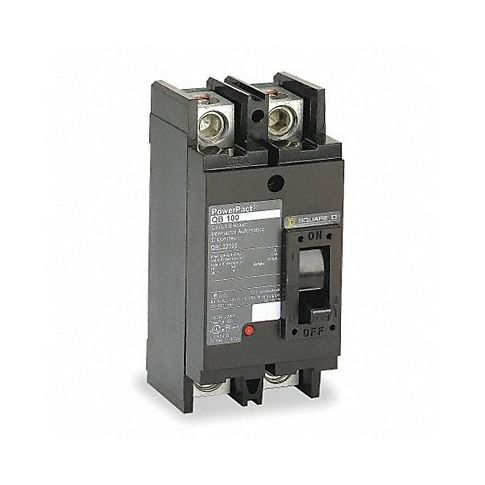

Circuit Breaker 100A 2P 240VAC QD MPN:QDL22100
Free Shipping
In Stock
Protect your devices from electrical damage with Square D's molded case circuit breaker - QD Series. Rated up to 250A and 240VAC, these circuit breakers interrupt excessive current flows, providing unparalleled protection for your equipment. Ideal for OEM commercial and industrial applications, they offer numerous benefits, such as easy installation, low maintenance requirements, and improved safety. With a maximum AIR rating of 25kA at 240V AC, these breakers are designed to handle even the most demanding electrical conditions. Whether you're in manufacturing, construction, or any other industry, the QD Series circuit breaker provides dependable protection and peace of mind. Don't settle for inferior products - choose Square D's QD Series molded case circuit breaker today!
Top product features:
- Rated up to 250A and 240VAC
- Interrupt excessive current flows for protection
- Contained in a molded case
Top product applications:
- Use in OEM commercial and industrial applications
- Interrupting excessive current flows for protection
- Improved safety in electrical systems
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 100 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 25kA at 240V AC
- Series QD
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 1
- Instantaneous Trip Fixed
- Phase Connection Not Applicable
- Frame Size 250A/QD
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QDL22100
- MPN: QDL22100
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
