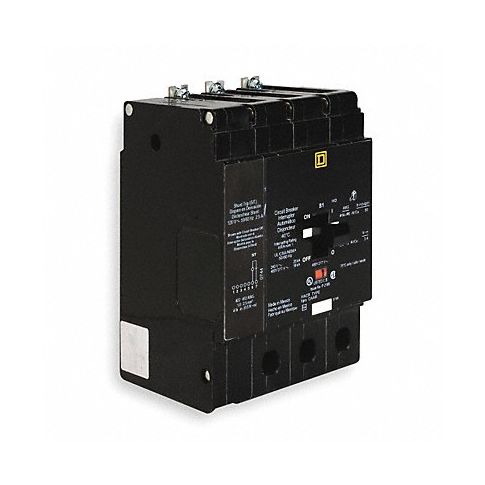

Circuit Breaker 80A Bolt On 277/480V 3P MPN:EDB34080SA
Free Shipping
In Stock
Introducing Square D's EBD and EGB series miniature circuit breakers, designed for bolting into NF panelboards for maximum stability and to interrupt currents upon low-level fault detection. With a lug orientation that allows straight-in wiring through bus bars, these circuit breakers eliminate the need for pigtailing wires and simplify load center organization. These breakers are ideal for use in various applications requiring 80 A of interrupting capacity at either 277 or 480 V AC. Their shunt trip type ensures quick and easy tripping when needed, while the three-pole design provides versatile circuit protection. Invest in Square D's reliable EBD and EGB miniature circuit breakers for maximum efficiency and safety in your electrical system.
Top product features:
- Bolted into place in NF panelboards for maximum stability
- Interrupts currents when low-level faults are detected in the circuit
- Lug orientation allows for straight-in wiring through bus bars
Top product applications:
- Used in electrical systems that require high stability and interrupting capacity
- Applicable for protecting circuits on panelboards from low-level faults
- Suitable for use in commercial, industrial, or residential applications where straight-in wiring is required
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 80 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 3.92 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
