Circuit Breaker 30A 120/240V 2P MPN:QOU230VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2JXE9

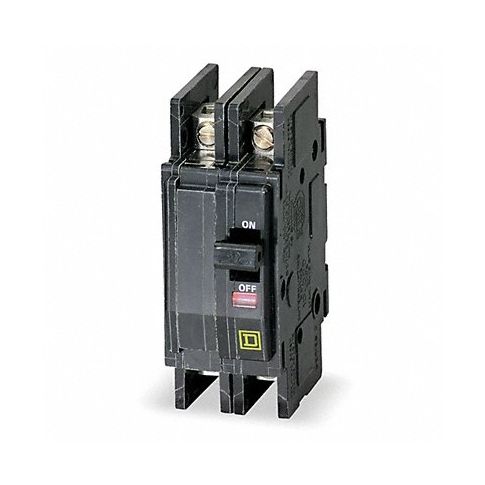

Circuit Breaker 30A 120/240V 2P
Introducing Square D's Circuit Breaker 30A 120/240V 2P - the ultimate solution for space-conscious electrical panel systems. These miniature circuit breakers can be installed in panelboards, load centers, and other low-clearance areas to save room without sacrificing functionality. Capable of handling currents up to 30A, these breakers are ideal for powering smaller appliances and devices in residential or commercial settings. With high interrupting capacity and a wide voltage rating, they offer reliable performance that exceeds industry standards. Use them with peace of mind knowing that Square D's commitment to quality ensures years of trouble-free operation.
Top product features:
- Space-saving installation options (surface, flush, DIN rail)
- Handles currents up to 30A for smaller appliances and devices
- High interrupting capacity for reliable performance
Top product applications:
- Residential electrical panel systems for smaller appliances and devices
- Commercial electrical load centers in offices or retail spaces
- Industrial control panels with space constraints and high interrupting capacity requirements
These QOU series miniature circuit breakers can be surface-, flush-, or DIN rail-mounted in panelboards and load centers to free up space wherever it's needed. They interrupt currents when overloads are detected in the circuit and can switch on both AC and DC electrical systems.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Surface/DIN Rail
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOU
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Air Conditioning and Refrigeration Equipment, Heating
- Terminal Connection Slotted Box Lug (Reversible Line and Load)
- Frame Size 100A/QOU
- Length 4.05 in
- Width 1.5 in
- Depth 2.95 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOU230VH
- MPN: QOU230VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
