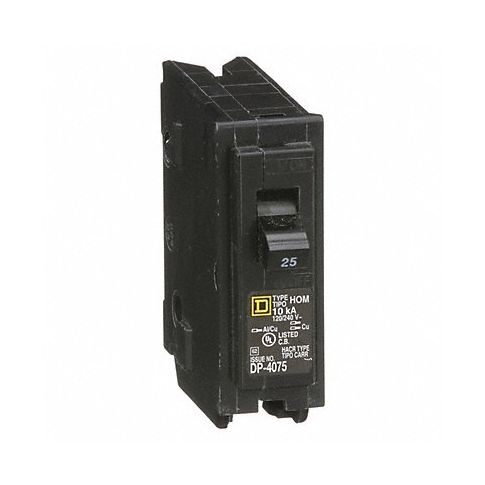

Circuit Breaker 25A Plug In 120V 1P MPN:HOM125
Free Shipping
In Stock
Introducing the Square D Circuit Breaker - the ideal solution for protecting your home from electrical hazards! With its sleek design and ease of installation, this miniature circuit breaker will safeguard your family and property against electrical overloads and short circuits. Its compact size and simplicity make it perfect for homes, apartments, or any location that requires protection from electrical faults. Say goodbye to the hassle of mounting and bolting circuits, as the Square D Circuit Breaker Plug-in is quick and easy to install in Homeline load centers. With a voltage rating of 120V AC and a current capacity of 25A, this breaker can handle moderate electrical loads. Its standard circuit type ensures compatibility with most home electrical systems, making it an excellent choice for residential applications. Take charge of your home's safety today with the Square D Circuit Breaker!
Top product features:
- Plug-in installation No need for DIN rail or bolts, easier to install than unit-mount or bolt-on breakers.
- Interrupts currents when low-level faults are detected in the circuit Provides added safety and protects against electrical hazards.
- Connects to power supply through bus bars Eliminates the need to pigtail wires and helps organize the load center.
Top product applications:
- Home use Protect your home from electrical hazards and provide added safety.
- Small office or residential units Safeguard electrical circuits in smaller settings.
- Temporary installations Easy installation for short-term usage, such as construction sites or events.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 25 A
- AC Voltage Rating 120V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 1 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, Switching Duty rated, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM125
- MPN: HOM125
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on March 1, 2024 1:00am UTC Category: Distribution
