Load Center 200A Lug 1 Phase 30 Spaces MPN:QO130L200PG

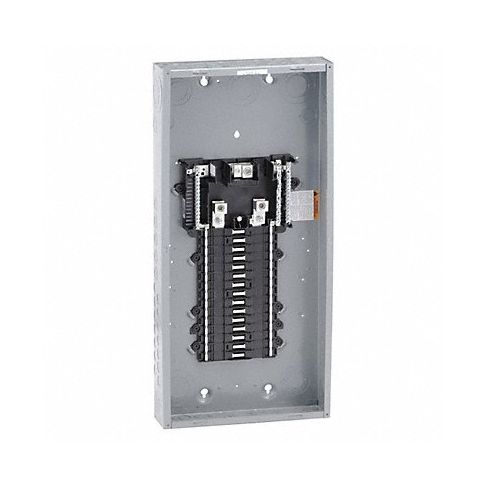

Load Center 200A Lug 1 Phase 30 Spaces
Introducing the Square D Load Center - your perfect solution for distributing power in any setting. With its 30 spaces and compatibility with AFCI or GFCI breakers, it offers seamless connection options, making installation easier than ever before. Convert it to a main breaker load center for greater flexibility, and experience the ease of protecting your circuits with QO series circuit breakers. From residential use to commercial and industrial applications, this powerful load center provides reliable performance without compromising on safety or efficiency. Choose Square D Load Center and elevate your power distribution today!
Top product features:
- 30 Spaces for flexible circuit distribution
- Compatibility with AFCI or GFCI breakers for safe connections
- Conversion to main breaker load center for added functionality
Top product applications:
- Residential settings for home circuits distribution
- Commercial premises as power hubs for multiple circuits
- Industrial use in machine shops or assembly lines
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center, so they can be used to distribute the main supply of power if needed. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. They're used with QO series circuit breakers to protect circuits from overcurrents. These load centers are used in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 30
- Amps 200 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Convertible, Main Lug
- Max. No. of Tandem Breakers 10
- Phase 1
- Series QO
- Height 29 27/32 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 65kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover 1D435
- Recommended Ground Bar Kit Included
- Recommended Surface Cover 1D436
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO130L200PG
- MPN: QO130L200PG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
