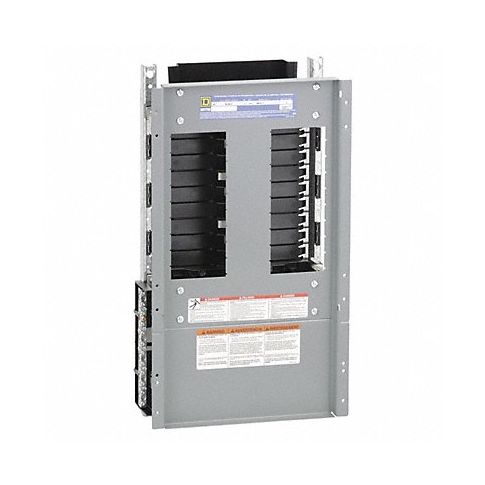

Panelboard Interior 125 A 277/480VAC MPN:NF418L1C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3TZ02
Panelboard Interior 125 A 277/480VAC
Introducing the Square D NF panelboard interior - the ideal solution for power distribution needs. This robust panel board features a convertible design that allows it to be used as either a main circuit breaker load center or a simple panelboard interior when installed with bolt-on branch circuit breakers and top and bottom feed breakers. With amperages ranging from 125A to 800A, this product is suitable for various applications such as residential, commercial, and industrial environments. It also comes with an efficient main lug system that ensures easy power distribution while reducing maintenance costs. Whether you need to distribute power downstream from a main breaker or require additional panel space, the Square D NF panelboard interior delivers reliable performance and durability that you can trust.
Top product features:
- Convertible Main Lug System: This feature allows users to easily convert this panelboard interior from a main circuit breaker load center to a simple panelboard interior when used with bolt-on branch circuit breakers and top and bottom feed breakers.
- Reliable Power Distribution: This product's main lug system ensures easy power distribution while reducing maintenance costs, making it perfect for use in demanding residential, commercial, and industrial applications.
- Adaptability: The Square D NF panelboard interior is designed to accommodate various amperage needs from 125A to 800A, providing flexibility when used in different applications.
Top product applications:
- Main Lug Panelboard Interior: This product is perfect for use when all the circuit slots in the main breaker load center are full or when a remote panel is desired.
- Conversion to Distribute Main Supply: The Square D NF panelboard interior can be used as a main breaker load center by using an adapter kit and a main circuit breaker, providing an excellent solution for distributing the main supply of power if needed.
- Reliable Power Distribution in Demanding Environments: With its adaptability to amperages from 125A to 800A and use in residential, commercial, and industrial applications, this product is perfect for distributing power in demanding environments where reliability and flexibility are crucial.
These Square D NF main lug panel interiors distribute power downstream from main breakers. They're used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center with a required adapter kit and main circuit breaker, so they can be used to distribute the main supply of power if needed. They're used with bolt-on branch circuit breakers and top and bottom feed breakers to protect circuits from overcurrents. These interiors are used as part of a complete panelboard system and can be customized to meet different needs. They're used in residential, commercial, and industrial applications.
Technical Specifications
- Item Panelboard Interior
- Main Circuit Breaker or Main Lug Convertible, Main Lug
- Circuit Breaker Series EDB, EDG, EDJ
- Amps 125 A
- Short Circuit Current Rating 100000 RMS Symmetrical
- Number of Spaces 18
- Voltage 277/480YV AC
- Phase 3
- Bus Material Copper
- Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker
- Circuit Breaker Type Plug In Miniature
- For Use With NF Circuit Breakers
- Height 21 in
- Depth 5 3/4 in
- Width 10 7/16 in
- Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker
- Recommended Surface Cover 3TX78 for Main Lug, 3TX82 for Main Breaker
- Standards CSA C22.2, UL 67
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: NF418L1C
- MPN: NF418L1C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Panel Board Interiors
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121103
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Panelboards
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
