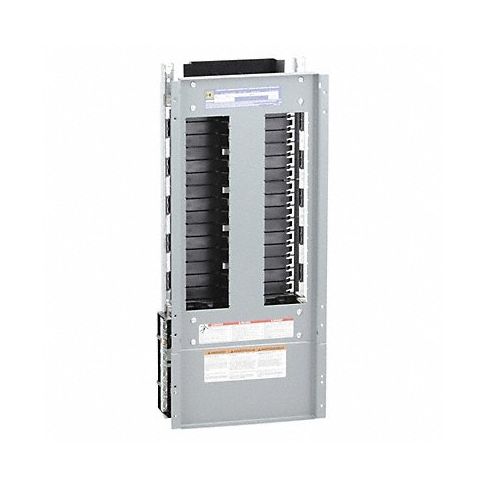

Panelboard Interior 125 A 277/480VAC MPN:NF430L1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-3tz03
Panelboard Interior 125 A 277/480VAC
The Square D NF main lug panel interior is an essential component in any commercial or industrial setting where reliable electrical distribution is critical. This versatile product can be converted to a main breaker load center with an adapter kit and main circuit breaker, providing endless configuration possibilities. Designed for use with bolt-on branch circuit breakers and top and bottom feed breakers, it effectively protects circuits from overcurrents while ensuring optimal power distribution. Its customizable nature makes it ideal for a wide range of applications, making it an indispensable addition to any electrical system. Choose Square D NF main lug panel interiors for exceptional performance and peace of mind.
Top product features:
- Convertible to main breaker load center
- Protects circuits from overcurrents
- Customizable for various applications
Top product applications:
- Residential settings for electrical distribution and protection
- Commercial spaces requiring customizable power distribution systems
- Industrial facilities that require reliable electrical control and safety
These Square D NF main lug panel interiors distribute power downstream from main breakers. They're used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center with a required adapter kit and main circuit breaker, so they can be used to distribute the main supply of power if needed. They're used with bolt-on branch circuit breakers and top and bottom feed breakers to protect circuits from overcurrents. These interiors are used as part of a complete panelboard system and can be customized to meet different needs. They're used in residential, commercial, and industrial applications.
Technical Specifications
- Item Panelboard Interior
- Main Circuit Breaker or Main Lug Convertible, Main Lug
- Circuit Breaker Series EDB, EDG, EDJ
- Amps 125 A
- Short Circuit Current Rating 100000 RMS Symmetrical
- Number of Spaces 30
- Voltage 277/480YV AC
- Phase 3
- Bus Material Aluminum
- Recommended Enclosure 1D691 for Main Lug, 1D698 for Main Breaker
- Circuit Breaker Type Plug In Miniature
- For Use With NF Circuit Breakers
- Height 27 in
- Depth 5 3/4 in
- Width 10 7/16 in
- Main Circuit Breaker Adapter Kit 22P069, 48N065
- Recommended Flush Cover 4HGZ9 for Main Lug, 4HHA1 for Main Breaker
- Recommended Surface Cover 3TX80 for Main Lug, 3TX84 for Main Breaker
- Standards CSA C22.2, UL 67
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: NF430L1
- MPN: NF430L1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Panel Board Interiors
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121103
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Panelboards
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
