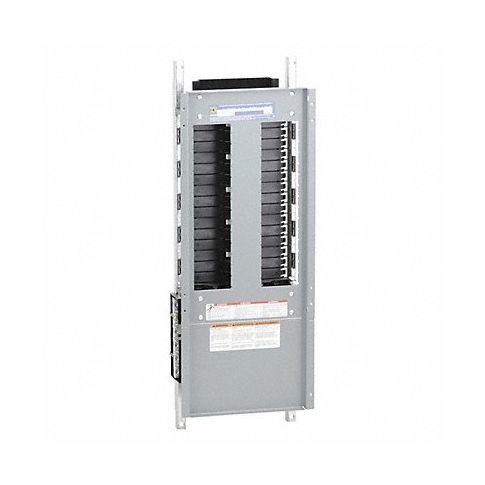

Panelboard Interior 250 A 277/480VAC MPN:NF430L2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-3tz05
Panelboard Interior 250 A 277/480VAC
Upgrade your electrical panel system with the Square D NF Panelboard Interior, specifically designed for heavy-duty commercial and industrial applications. This main lug panel interior distributes power downstream from the main breakers, providing additional circuit slots when the existing load center is full or requiring a remote panel. The convertible design allows easy conversion to a main breaker load center, simplifying your panelboard system. With bolt-on branch circuit breakers and top and bottom feed breakers, it offers comprehensive protection against overcurrents. Use it for various residential, commercial, and industrial applications in a customizable setup. Invest in the Square D NF Panelboard Interior today for streamlined power distribution and unmatched safety.
Top product features:
- Convertible Design This allows easy conversion to a main breaker load center for simplified panelboard system
- Bolt-On Branch Circuit Breakers These offer comprehensive protection against overcurrents in various residential, commercial, and industrial applications
- Customizable Setup It can be customized to meet different needs with the use of a complete panelboard system
Top product applications:
- Heavy-Duty Commercial and Industrial Settings This panel interior is ideal for environments that demand high power distribution and advanced protection against overcurrents in various industrial applications such as factories or warehouses
- Extended Panel System It offers additional slots to the main load center when it's full or for creating a remote panel in large scale systems to save space and make management easier
- Customizable Configuration The convertible design allows this panel interior to be integrated as part of a complete Square D NF panelboard system that can be tailored to meet different needs and specifications. It provides versatility for various applications like residential homes or small businesses.
These Square D NF main lug panel interiors distribute power downstream from main breakers. They're used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center with a required adapter kit and main circuit breaker, so they can be used to distribute the main supply of power if needed. They're used with bolt-on branch circuit breakers and top and bottom feed breakers to protect circuits from overcurrents. These interiors are used as part of a complete panelboard system and can be customized to meet different needs. They're used in residential, commercial, and industrial applications.
Technical Specifications
- Item Panelboard Interior
- Main Circuit Breaker or Main Lug Convertible, Main Lug
- Circuit Breaker Series EDB, EDG, EDJ
- Amps 250 A
- Short Circuit Current Rating 100000 RMS Symmetrical
- Number of Spaces 30
- Voltage 277/480YV AC
- Phase 3
- Bus Material Aluminum
- Recommended Enclosure 1D700 for Main Breaker, 6B429 for Main Lug
- Circuit Breaker Type Plug In Miniature
- For Use With NF Circuit Breakers
- Height 33 in
- Depth 5 3/4 in
- Width 10 7/16 in
- Main Circuit Breaker Adapter Kit 22P070, Mfr. No. N250MKC
- Recommended Flush Cover 4HGZ9 for Main Lug, 4HHA1 for Main Breaker
- Recommended Ground Bar Kit 1D370
- Recommended Surface Cover 3TX80 for Main Lug, 3TX84 for Main Breaker
- Standards CSA C22.2, UL 67
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: NF430L2
- MPN: NF430L2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Panel Board Interiors
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121103
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Panelboards
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000E259GE, B076TQCT1M
