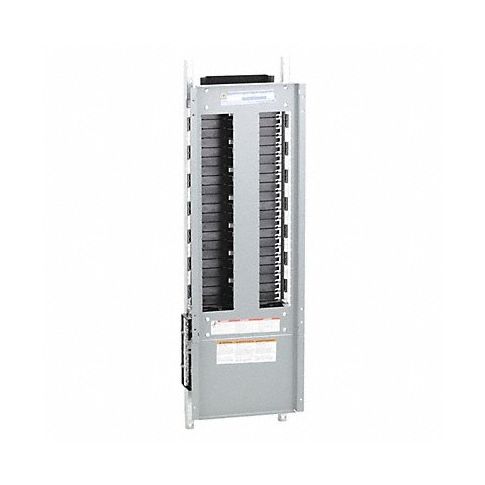

Panelboard Interior 250 A 277/480VAC MPN:NF442L2
Free Shipping
In Stock
Introducing the Square D NF main lug panel interior - the perfect solution for your electrical distribution needs! This high-quality product is designed to distribute power downstream from main breakers and can be used when all circuit slots in the main breaker load center are full or a remote panel is desired. What's more, it can be converted to a main breaker load center with the required adapter kit and main circuit breaker, allowing you to distribute the main supply of power if needed. The Square D NF main lug panel interior features bolt-on branch circuit breakers and top and bottom feed breakers to protect circuits from overcurrents. Easy to customize to meet your specific needs, this product is perfect for residential, commercial, and industrial applications. Say goodbye to cluttered electrical systems - the Square D NF main lug panel interior is here to streamline your power distribution and keep you safe!
Top product features:
- Convertible from main breaker load center to distribute main supply power if needed.
- Bolt-on branch circuit breakers and top and bottom feed breakers for overcurrent protection.
- Used as part of a complete panelboard system and can be customized to meet different needs.
Top product applications:
- Power distribution in commercial and industrial facilities for machine tools, lighting systems, and office equipment.
- Used as service entrance equipment to supply power to multi-occupancy buildings or small campuses from a single source.
- Panelboard installations in hospitals, schools, hotels, shopping centers, airports, warehouses, and manufacturing plants.
Technical Specifications
- Item Panelboard Interior
- Main Circuit Breaker or Main Lug Convertible, Main Lug
- Circuit Breaker Series EDB, EDG, EDJ
- Amps 250 A
- Short Circuit Current Rating 100000 RMS Symmetrical
- Number of Spaces 42
- Voltage 277/480YV AC
- Phase 3
- Bus Material Aluminum
- Recommended Enclosure 1D698 for Main Lug, 22P067 for Main Breaker
- Circuit Breaker Type Plug In Miniature
- For Use With NF Circuit Breakers
- Height 39 in
- Depth 5 3/4 in
- Width 10 7/16 in
- Main Circuit Breaker Adapter Kit 22P070, Mfr. No. N250MKC
- Recommended Flush Cover 3TX91 for Main Breaker, 4HHA1 for Main Lug
- Recommended Surface Cover 3TX84 for Main Lug, 3TX92 for Main Breaker
- Standards CSA C22.2, UL 67
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: NF442L2
- MPN: NF442L2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Panel Board Interiors
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121103
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Panelboards
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 4:44am UTC Category: Distribution
