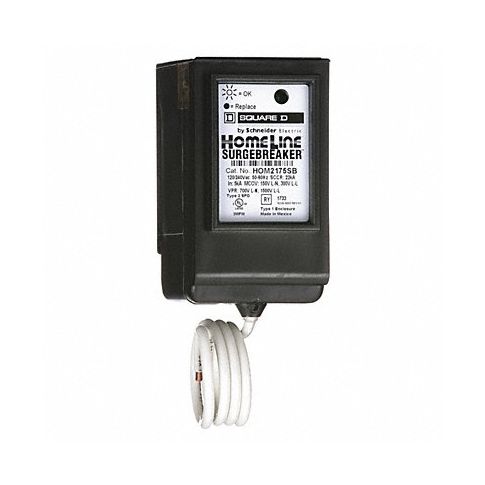

Surge Protection Device 120/240VAC 1Ph MPN:HOM2175SB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3XB85
Surge Protection Device 120/240VAC 1Ph
Protect your home or business from electrical surges with our reliable Surge Protection Device (SPD) from Square D. Designed for residential and light commercial use, these SPDs install easily into Square D panelboards and load centers to detect and limit power surges that can damage equipment. With a voltage rating of 120/240V AC, Phase 1, and a voltage protection rating of 1500V (L-L), 700V (L-N), these SPDs provide superior protection against power surges and offer a max. continuing operating voltage of 150V AC. Invest in peace of mind and safeguard your electrical equipment with our high-quality SPDs from Square D today!
Top product features:
- Installs in Square D QO, HOM, I-Line, and NQ panelboards and load centers
- Detects and limits power surges to protect equipment from damage
- Maximum continuing operating voltage of 150V AC
Top product applications:
- Protecting sensitive electrical equipment from power surges in residential settings
- Safeguarding light commercial operations against voltage fluctuations and spikes
- Ensuring continuity of service during brownouts and blackouts for critical loads in essential facilities
These SPDs install in Square D QO, HOM, I-Line, and NQ panelboards and load centers and are used for residential and light commercial applications. These SPDs detect and limit power surges to protect equipment from damage.
Technical Specifications
- Item Surge Protection Device
- Voltage 120/240V AC
- Phase 1
- Voltage Protection Rating 1500V (L-L), 700V (L-N)
- Max. Continuing Operating Voltage 150V AC
- Nominal Discharge Current 5 kA
- Modes of Protection L-L, L-N
- Mounting Location Internally Mounted
- Filtering No
- Modular No
- Amps 5 K
- Color Black
- Mounting Style For HOM Load Centers
- Enclosure NEMA Rating 2
- Number of Poles 2
- Basic Material Nonmetallic
- Number of Wires 3 Wires
- System Connection Parallel
- Max. Surge Current per Phase 22.5 kA
- Short Circuit Current Rating 22kA
- Max. Surge Current per Mode 22.5kA
- UL SPD Type Type 2
- Joules 900
- Length 3.7 in
- Width 2.0 in
- Depth 2.6 in
- Enclosure Material Plastic
- Max. Operating Temp. 149 Degrees F
- Includes LED Status Indicator
- Standards CSA 233.1-87, CSA C22.2 No. 8-M1986, NEC Article 285, UL Listed, UL 1449, Type 2
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM2175SB
- MPN: HOM2175SB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536308000
- GDS Category Name: Hardwire Surge Protection Devices
- GDS Family Name: Voltage Regulation
- GDS Segment Name: Electrical
- UNSPSC: 39121610
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Surge suppressers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B008DIYAPM
Product info last updated on November 17, 2023 12:17pm UTC Category: Voltage Regulation
