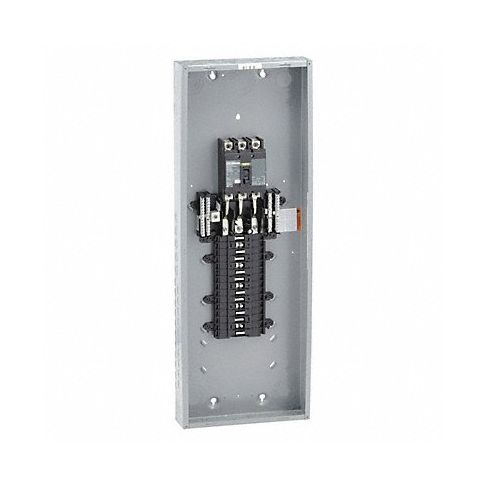

Load Center 200A CB 3 Phase 30 Spaces MPN:QO330MQ200
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-3xb90
Load Center 200A CB 3 Phase 30 Spaces
The Load Center 200A CB 3 Phase 30 Spaces from Square D is an ideal solution for distributing power in various settings like residential homes, commercial establishments, or industrial areas. Its main use is to supplement a load center when the circuit slots are full or when a remote panel is required. The product also has features that allow it to act as the primary distribution of electricity supply. By providing efficient and reliable power delivery, it prevents potential hazards in electrical systems. Additionally, it comes with AFCI or GFCI compatible breakers that enable quick circuit protection while keeping users safe. These load centers are sturdy and made from durable materials that guarantee lasting performance across diverse applications. With its 30 spaces, the Load Center 200A offers versatile usage for a variety of wiring configurations.
Top product features:
- Main Lug Load Center Conversion: This load center can be converted to a main breaker load center, making it suitable for distributing the main supply of power.
- AFCI/GFCI Compatible Breakers: The product features bus and neutral bars compatible with AFCI or GFCI breakers without requiring any pigtail connection, improving safety.
- Versatile Wiring Configurations: The load center has 30 spaces, providing versatile usage for a variety of wiring configurations in diverse applications.
Top product applications:
- Electrical Panel in Commercial Buildings: This load center can be used in electrical panels of commercial buildings for supplying power to various circuits and equipment.
- Mobile Home Parks: It can serve as a load center in mobile home parks, providing adequate power distribution to different units while maintaining safety with compatible breakers.
- Light Industrial Applications: The load center is suitable for light industrial applications where temporary or permanent power supply is needed through the use of AFCI/GFCI breakers and compatible devices.
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center, so they can be used to distribute the main supply of power if needed. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. They're used with QO series circuit breakers to protect circuits from overcurrents. These load centers are used in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 30
- Amps 200 A
- Voltage 208Y/120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker
- Max. No. of Tandem Breakers 0
- Phase 3
- Series QO
- Height 39 3/8 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 25kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover 3XB93
- Recommended Ground Bar Kit 1D370
- Recommended Surface Cover 3XB94
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO330MQ200
- MPN: QO330MQ200
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000E26T9K
Product info last updated on November 17, 2023 12:15pm UTC Category: Distribution
