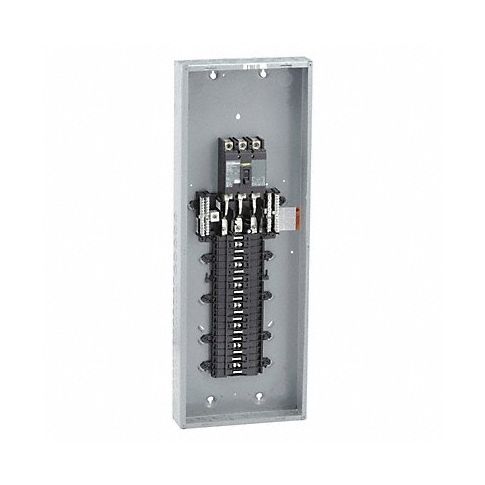

Load Center 225A CB 3 Phase 42 Spaces MPN:QO342MQ225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-3xb92
Load Center 225A CB 3 Phase 42 Spaces
Upgrade your electrical system with Load Center 225A CB 3 Phase 42 Spaces from Square D. Designed for residential, commercial, and industrial applications, this load center distributes power downstream from main breakers and can be converted to a main breaker load center when needed. The neutral bar allows compatible AFCI or GFCI breakers to plug directly onto the bus and neutral bars, providing an easy and safe installation. Protect your circuits with QO series circuit breakers that prevent overcurrents. With 42 spaces for up to 225 Amps, this load center offers ample power distribution in one compact unit. Improve your electrical system's efficiency, safety, and reliability with Load Center 225A CB 3 Phase 42 Spaces from Square D.
Top product features:
- Lightweight Design This lightweight design allows for easier installation and transportation, reducing the physical burden on users and ensuring they can complete the task quickly and easily.
- Neutral Bar The neutral bar allows for easy connection of AFCI or GFCI breakers without requiring a pigtail connection, making wiring faster and more secure.
- Ample Power Distribution With 42 spaces available for up to 225 Amps of power distribution, this load center can handle large electrical loads in residential, commercial, and industrial applications.
Top product applications:
- Residential homes for main electrical panels or sub-panels
- Commercial buildings to manage electrical distribution across multiple circuits and outlets
- Industrial settings to power heavy-duty machines and equipment
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center, so they can be used to distribute the main supply of power if needed. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. They're used with QO series circuit breakers to protect circuits from overcurrents. These load centers are used in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 42
- Amps 225 A
- Voltage 208Y/120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker
- Max. No. of Tandem Breakers 0
- Phase 3
- Series QO
- Height 39 3/8 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 25kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover 3XB93
- Recommended Ground Bar Kit 1D371
- Recommended Surface Cover 3XB94
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO342MQ225
- MPN: QO342MQ225
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
