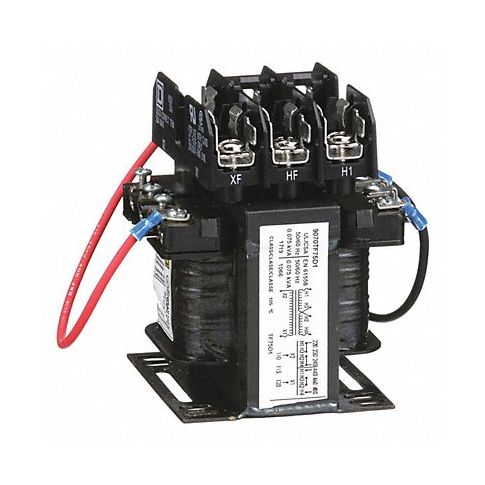

Control Transformer 75VA 4.43 in H MPN:9070TF75D1
Free Shipping
In Stock
Transformers are an essential part of various electronic devices, especially in voltage regulation and current management applications. The Schneider Electric Control Transformer 75VA is a reliable and efficient choice for power management tasks with its low impedance windings for excellent voltage regulation. Capable of accommodating high inrush currents, this transformer is ideal for powering contactors, starters, solenoids, relays, and other electronic components that require precise voltage control. With pre-wired fuse blocks and a compact design that meets most overcurrent needs, the Control Transformer 75VA saves time and money during installation while ensuring robust performance for years to come. In summary, this transformer is an excellent choice for electronics manufacturers, system integrators, and industrial users looking for a versatile and efficient power management solution.
Top product features:
- Low impedance windings for excellent voltage regulation
- Pre-wired fuse blocks for simplified installation and maintenance
- Compact design for space-saving applications
Top product applications:
- Powering electronic devices and appliances in remote locations where grid power is unavailable or inconsistent
- Running LED lights, motors, and other loads that require consistent voltage and current output
- Charging batteries for portable electronics and vehicles
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 75 VA
- Protective Device Primary Fuse, Secondary Fuse
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 55 Degrees C
- Enclosure Finish Varnish Vacuum Impregnation
- Height 4.43 in
- Depth 3.38 in
- Width 3.34 in
- Includes Top Mounted Fuse Block
- Standards Standard 508 and NEC 450
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070TF75D1
- MPN: 9070TF75D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Transformers
