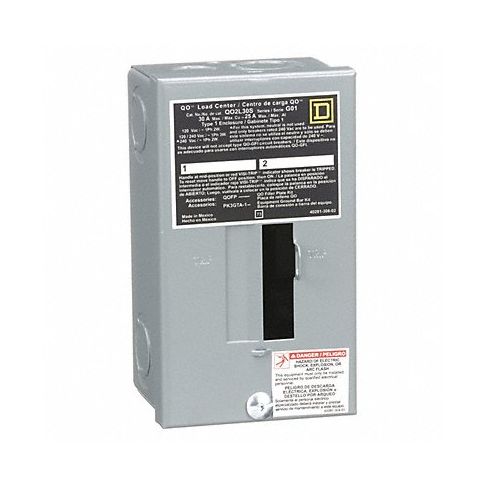

Load Center 30A Lug 1 Phase 2 Spaces MPN:QO2L30S
Free Shipping
In Stock
The Load Center 30A Lug 1 Phase 2 Spaces from Square D is the perfect solution for distributing power downstream from main breakers in residential, commercial, and industrial settings. This high-quality load center features a rugged construction and is easy to install, making it ideal for a variety of applications. It offers two circuit spaces, ensuring flexibility when managing your electrical needs. Additionally, its compact design takes up minimal space, making it perfect for smaller applications or where space is limited. Protect your circuits from overcurrents with the included QO series circuit breakers, offering superior protection and peace of mind. Don't settle for subpar products when you can get the quality and reliability of the Load Center 30A Lug 1 Phase 2 Spaces from Square D!
Top product features:
- Amps: The load center offers an amperage rating of 30 A, ensuring adequate power distribution for various applications.
- Compact design: The small footprint takes up minimal space in electrical boxes, making it ideal for tight or crowded installations.
- Circuit breaker compatibility: Designed to work with QO series circuit breakers for superior protection against overcurrents and short circuits.
Top product applications:
- Home wiring projects Use the load center when additional circuit spaces are needed in the main breaker panel.
- Commercial buildings Distribute power to various outlets and appliances in offices, retail spaces, or other commercial facilities.
- Workshops and garages Ensure safe electrical distribution for tools, machines, and equipment in residential or professional workspaces.
Technical Specifications
- Item Load Center
- Number of Spaces 2
- Amps 30 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Surface Cover
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 0
- Phase 1
- Series QO
- Height 6 47/64 in
- Width 3 13/16 in
- Depth 3 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Aluminum
- Short Circuit Current Rating 10kA
- Enclosure NEMA Rating 1
- Cover Attachment Style Clip, Screw On
- Cover Closure Method Lift-Off
- Recommended Ground Bar Kit 5B717
- Recommended Surface Cover Included
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO2L30S
- MPN: QO2L30S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
