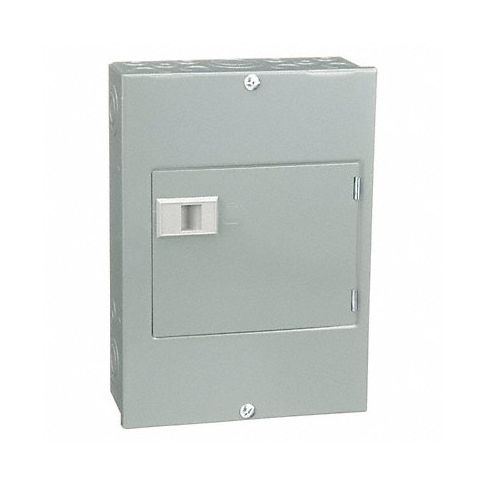

Load Center 100A Lug 1 Phase 6 Spaces MPN:QO612L100DS
Free Shipping
In Stock
The Square D Load Center is designed to distribute power efficiently and reliably in various settings. These load centers are ideal for use when all the circuit slots in the main breaker load center are full or when a remote panel is desired. By using QO series circuit breakers, these load centers offer excellent protection against overcurrents. With a capacity of 100 amps and compatibility with 120/240V AC power, this product is ideal for both residential and commercial applications. Its versatile design makes it a popular choice for various settings such as construction sites, offices, and warehouses. The easy-to-install design ensures that even novice users can set up this product with ease. Enjoy the peace of mind that comes with using a high-quality, reliable load center from Square D!
Top product features:
- Versatile use in residential, commercial, and industrial applications
- Compatible with 100A capacity and 120/240V AC power
- Uses QO series circuit breakers for efficient overcurrent protection
Top product applications:
- Used when all circuit slots in the main breaker load center are full
- Ideal for remote panel usage
- Designed to distribute power in residential, commercial, and industrial settings
Technical Specifications
- Item Load Center
- Number of Spaces 6
- Amps 100 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Surface Cover
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 6
- Phase 1
- Series QO
- Height 12 9/16 in
- Width 8 29/32 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Aluminum
- Short Circuit Current Rating 10kA
- Enclosure NEMA Rating 1
- Cover Attachment Style Screw On
- Cover Closure Method Lift-Off
- Recommended Ground Bar Kit 1D374
- Recommended Surface Cover Included
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Green Premium Product, Mercury Free, Toxic Heavy Metal Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO612L100DS
- MPN: QO612L100DS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
