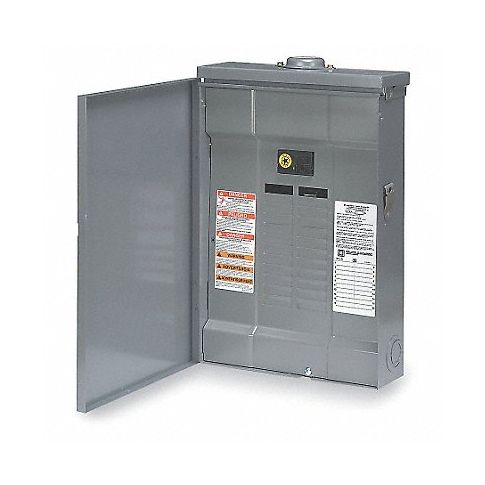

Load Center 125A CB 1 Phase 6 Spaces MPN:QO1612M125FTRB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5F706
Load Center 125A CB 1 Phase 6 Spaces
Introducing Square D's latest innovation - Load Center 125A CB 1 Phase 6 Spaces! Engineered to offer maximum power distribution for residential, commercial, and industrial settings, this load center provides the ultimate in safety and reliability. The main breaker protects against overcurrent while also allowing for easy single-phase conversion with a required lug kit. Its QO series breaker compatibility makes it ideal for a range of applications. With 6 spaces available, you can easily distribute power to all your essential devices with ease. Say goodbye to cluttered electrical systems and hello to efficient power management with the Load Center from Square D.
Top product features:
- Main breaker protection against overcurrent for increased safety
- Compatibility with QO series breakers for versatile applications
- Single-phase conversion with a required lug kit for easy installation
Top product applications:
- Commercial and industrial settings for power distribution
- Residential installations as a service entrance or main breaker
- Replacement or upgrade in existing electrical systems
These Square D main breaker load centers distribute the main supply of power and have a main breaker to protect the circuit from overcurrents. Single-phase load centers can be converted to a main lug load center with a required lug kit, so they can be used when a remote panel is desired. These main breaker load centers are used with QO series breakers. They can be used at the service entrance in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 6
- Amps 125 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Surface Cover
- Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker
- Max. No. of Tandem Breakers 6
- Phase 1
- Series QO
- Height 18 15/16 in
- Width 14 49/64 in
- Depth 4 1/2 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 22kA
- Enclosure NEMA Rating 3R
- Cover Attachment Style Side Hinge
- Cover Closure Method Door Latch
- Recommended Ground Bar Kit 1D374
- Recommended Surface Cover Included
- Color Gray
- Enclosure Material Galvanized Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Outdoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO1612M125FTRB
- MPN: QO1612M125FTRB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B007I9ZQLY
Product info last updated on April 4, 2024 7:47am UTC Category: Distribution
