H2644 Dfinit Prpose Cntactr 277VAC 60A 3P Open MPN:8910DPA63V04

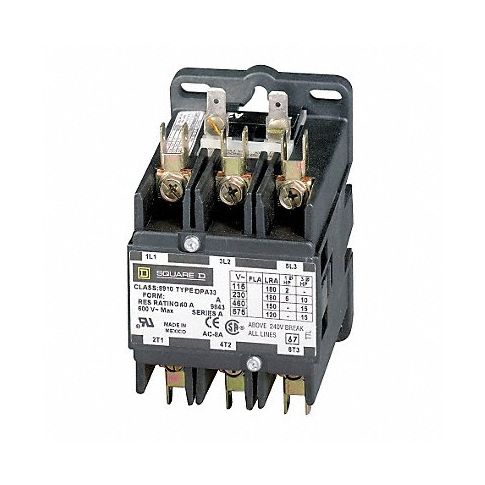

This Square D™ Magnetic Definite Purpose Contactor is an open style, 3-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. For convenience, the coils can be changed out swiftly without the need for tools. The included box lugs and industry-standard mounting help provide a more reliable connection and easier wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 277VAC coil volts. 60A (inductive) and 75A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.

Technical Specifications

• Item Definite Purpose Contactor
• Number of Poles 3
• Full Load Amps-Resistive 75
• Full Load Amps-Inductive 60
• Coil Volts 277V AC
• HP @ 1 Phase - 120V 5 hp
• HP @ 1 Phase - 240V 10 hp
• HP @ 3 Phase - 240V 25 hp
• HP @ 3 Phase - 480V 30 hp
• HP @ 3 Phase - 575V 30 hp
• Height 4.06 in
• Width 2.56 in
• Depth 3.67 in
• Enclosure NEMA Rating No Enclosure
• Hz 50/60
• Reversing No
• Series Standard
• Includes Quick Connect Terminal
• Standards CE, CSA, UL

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 8910DPA63V04
• MPN: 8910DPA63V04

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490065
• GDS Category Name: Definite Purpose Magnetic Contactors
• GDS Family Name: Starters and Contactors
• GDS Segment Name: Electrical
• UNSPSC: 39121529
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 29
• UNSPSC Commodity Name: Contactors
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
