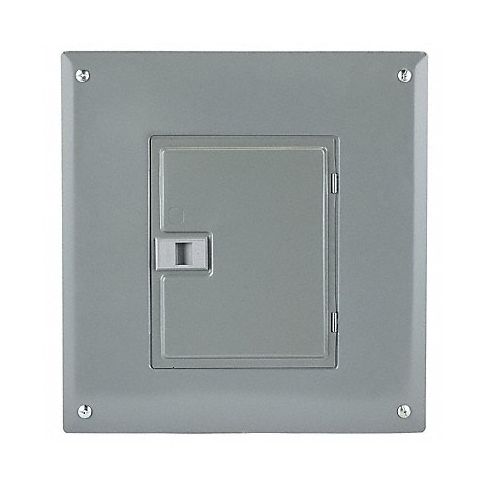

Load Centers 125A 120/240VAC MPN:QO112L125PGC
The Square D main lug load center is an ideal choice for commercial, residential, and industrial applications where all the circuit slots in the main breaker load center are full or when a remote panel is desired. This versatile load center can be converted to a main breaker load center to distribute the main supply of power if needed. Featuring neutral bars on either side of the bus bars, this load center allows you to use compatible AFCI or GFCI breakers directly onto the bus and neutral bars without requiring a pigtail connection, providing excellent circuit protection from overcurrents. With 12 spaces for QO series circuit breakers, this load center is perfect for powering various electrical devices with ease. Get yours today to ensure safe and reliable power distribution in your home or workspace!
Top product features:
- Neutral bar on either side of bus bars
- Can be converted to main breaker load center
- Used with QO series circuit breakers to protect circuits from overcurrents
Top product applications:
- Electrical distribution in commercial and residential settings
- Power management in industrial environments
- Protection against electrical overload in any installation
Technical Specifications
- Item Load Center
- Number of Spaces 12
- Amps 125 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Combination Flush/Surface Cover
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 12
- Phase 1
- Height 17 15/16 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Short Circuit Current Rating 65 kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover Included
- Recommended Ground Bar Kit Included
- Recommended Surface Cover Included
- Color Gray
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoors
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO112L125PGC
- MPN: QO112L125PGC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: CA HI AK PR
