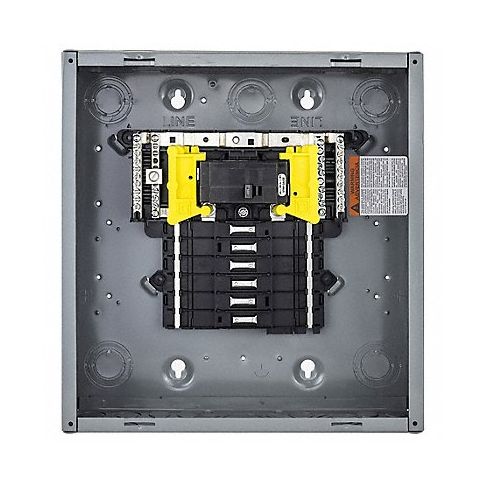

Load Centers 100A 120/240VAC MPN:QO112M100PC
Load Centers 100A 120/240VAC
Square D Load Centers are designed to provide secure and reliable power distribution for your home or business. These load centers come with a main breaker to protect your circuit from overcurrents and can be converted into a main lug load center with the addition of a required lug kit. The neutral bars on either side of the bus bars make it easy to plug in AFCI or GFCI breakers without needing pigtail connections. The 100A capacity makes these load centers ideal for use in residential, commercial, and industrial applications. With their durable construction and easy installation, Square D Load Centers are the perfect choice for your power distribution needs.
Top product features:
- Main breaker to protect against overcurrents
- Neutral bars for easy installation of AFCI or GFCI breakers
- Used at the service entrance in residential, commercial and industrial applications
Top product applications:
- Use at the service entrance in residential homes
- Use as the main load center for industrial machines and equipment
- Use as the main breaker panel in commercial buildings
These Square D main breaker load centers distribute the main supply of power and have a main breaker to protect the circuit from overcurrents. They can be converted to a main lug load center with a required lug kit, so they can be used when a remote panel is desired. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. These load centers are used with QO series breakers. They can be used at the service entrance in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 12
- Amps 100 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Combination Flush/Surface Cover
- Main Circuit Breaker or Main Lug Main Circuit Breaker
- Max. No. of Tandem Breakers 12
- Phase 1
- Height 14 15/16 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Short Circuit Current Rating 22 kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover Included
- Recommended Surface Cover Included
- Color Gray
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoors
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO112M100PC
- MPN: QO112M100PC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: CA HI AK PR
