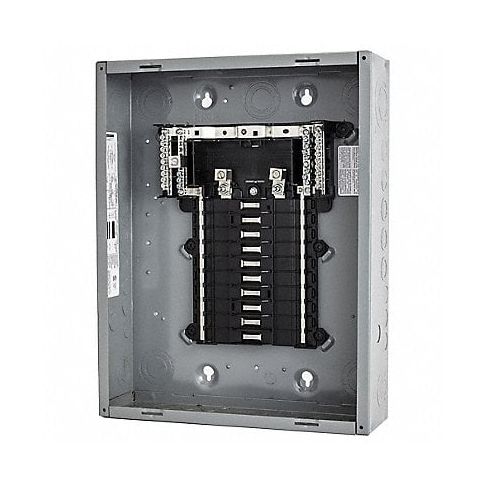

Load Centers 200A 120/240VAC MPN:QO124L200PG
Square D Load Centers provide unmatched power distribution and safety for homes, offices, and industries. With a robust design and innovative features, these load centers are perfect for distributing electricity to multiple circuits from a single breaker panel. The load center's main lug configuration ensures efficient distribution of power, while the arc-fault protection safeguards your home or office against electrical hazards. These versatile load centers can be converted into a main breaker system and used with QO series circuit breakers to provide maximum reliability and safety. With space for up to 24 circuits, these load centers are ideal for applications ranging from simple home installations to large commercial complexes. Invest in the best today, and enjoy peace of mind tomorrow.
Top product features:
- Main lug configuration for efficient power distribution
- Arc-fault protection for safety against electrical hazards
- Compatibility with AFCI and GFCI breakers without pigtail connection
Top product applications:
- Home electrical panel for distributing power to multiple circuits and protecting against overloads or shorts
- Light commercial usage in offices or small businesses with high power demand
- Remote electrical distribution in industrial settings, such as on construction sites, for temporary installations or machinery.
Technical Specifications
- Item Load Center
- Number of Spaces 24
- Amps 200 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 12
- Phase 1
- Height 29 7/8 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Short Circuit Current Rating 65 kA
- Enclosure NEMA Rating 1
- Recommended Ground Bar Kit Included
- Color Gray
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoors
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO124L200PG
- MPN: QO124L200PG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: CA HI AK PR
