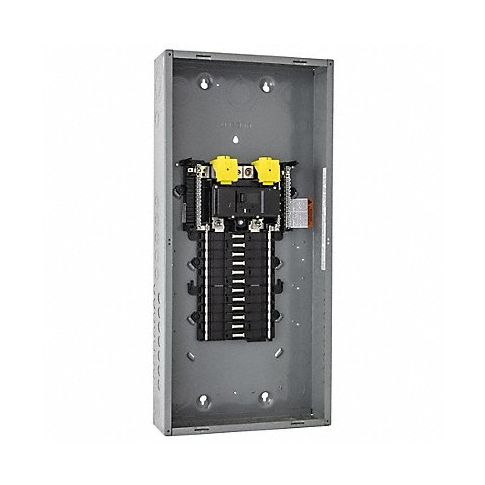

Load Centers 200A 120/240VAC MPN:QO124M200P
Load Centers 200A 120/240VAC
The Square D Load Centers 200A 120/240VAC main breaker load centers are perfect for distributing power in residential, commercial, or industrial applications. These robust load centers have a main breaker to protect the circuit from overcurrents and can be converted into a main lug load center with an optional kit. They feature neutral bars on either side of the bus bars, allowing direct connection of compatible AFCI or GFCI breakers without requiring a pigtail connection. With 24 spaces, these load centers are ideal for distributing power to multiple circuits safely and efficiently. Their versatility and advanced features make them an excellent choice for any electrical project where reliability and protection are essential.
Top product features:
- Load Centers provides a central location for managing electrical power distribution and helps protect against overloads or short circuits.
- 200 Ampacity offers sufficient capacity to handle heavy electrical loads, suitable for use in commercial or industrial settings.
- Neutral Bars allows direct connection of compatible AFCI/GFCI breakers without the need for additional pigtail connections, simplifying installation and reducing the risk of errors.
Top product applications:
- Residential Use in homes for distributing electrical power to various circuits safely and efficiently.
- Commercial Installation in offices, shops, schools, or other businesses where higher amperages are required.
- Industrial Utilization at construction sites, factories, or other heavy-duty facilities that need heavy electrical loads and protection against short circuits or overloads.
These Square D main breaker load centers distribute the main supply of power and have a main breaker to protect the circuit from overcurrents. They can be converted to a main lug load center with a required lug kit, so they can be used when a remote panel is desired. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. These load centers are used with QO series breakers. They can be used at the service entrance in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 24
- Amps 200 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Main Circuit Breaker
- Max. No. of Tandem Breakers 12
- Phase 1
- Height 29 7/8 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Short Circuit Current Rating 22 kA
- Enclosure NEMA Rating 1
- Color Gray
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoors
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO124M200P
- MPN: QO124M200P
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: CA HI AK PR
