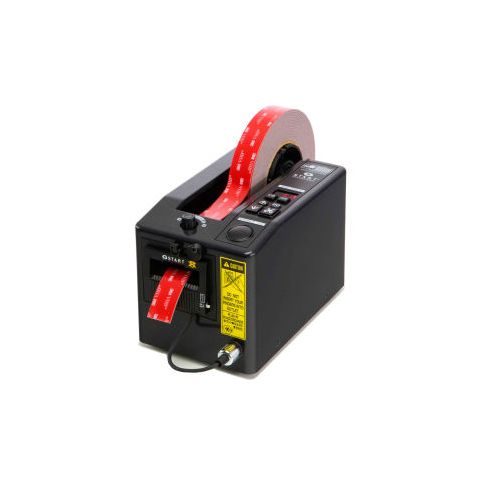

Start International Electronic Tape Dispenser For 2"W Double-Sided & VHB Tapes ZCM1000NS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-6561B96
Start International Electronic Tape Dispenser For 2""W Double-Sided & VHB Tapes ZCM1000NS
START International ZCM1000NS Electronic Tape Dispenser for Double-Sided & VHB Tapes 2" Wide
The START International ZCM1000NS Electronic Tape Dispenser for Double-Sided, VHB Tapes and similar tapes automatically cuts and advances predefined tape lengths, and is suitable for medium to high production of repetitive taping in industrial applications. A special non-stick advancement roller handles Double-sided, VHB and other high-tack tapes. Preset lengths of 0.79 inch to 39 inch (20mm to 999mm) can be overridden for a custom cut, and then returned to the autofeed settings. Feed roller pressure can be adjusted for tape thickness. The guillotined cut provides a straight edge to the dispensed tape. Estimated blade life is 200,000 cuts, depending upon the type of tape material. Cut length tolerance is + or - 0.04 inch (1mm). FOR DOUBLE-SIDED & VHB TAPES
Features:
The START International ZCM1000NS Electronic Tape Dispenser for Double-Sided, VHB Tapes and similar tapes automatically cuts and advances predefined tape lengths, and is suitable for medium to high production of repetitive taping in industrial applications. A special non-stick advancement roller handles Double-sided, VHB and other high-tack tapes. Preset lengths of 0.79 inch to 39 inch (20mm to 999mm) can be overridden for a custom cut, and then returned to the autofeed settings. Feed roller pressure can be adjusted for tape thickness. The guillotined cut provides a straight edge to the dispensed tape. Estimated blade life is 200,000 cuts, depending upon the type of tape material. Cut length tolerance is + or - 0.04 inch (1mm). FOR DOUBLE-SIDED & VHB TAPES
Features:
- Ideal for Double-Sided, VHB and other high-tack tapes
- Auto Feed & Cut Tape Dispenser
- Digital length adjustment
- 0.28" - 2" (7-50mm)in width
- 0.79" - 39"(20-999mm) in length
- Outside Roll Diameter up to 7" (178mm)
- Includes 3-in-1 core holder (1 inch, 1.4 inch, 3 inch)
- Steel Frame For Durability
Product Specifications
- BRANDStart International
- LENGTH INCHES9-11/16
- WIDTH INCHES5-5/16
- HEIGHT INCHES6-5/16
- CORE SIZE INCHES1, 1-6/16, 3
- TAPE ROLL DIAMETER INCHES7
- COLORBlack
- ASSEMBLYNot Required
- CONSTRUCTIONHeavy-Duty Plastic, Steel
- VOLTAGE117V (220V Available)
- AMPSLess Than 1
- HERTZ50/60
- NUMBER OF LENGTH SETTINGSMultiple (13/16" to 39")
- DISPLAYLED
- CUTTERAutomatic
- PROGRAMMABLE MEMORY1 Memory
- FEED TYPEAutomatic
- FOR USE WITHDouble-Sided Tape up to 2"W
- DESCRIPTIONElectric Tape Dispenser for Double-Sided & VHB Tapes
- TYPEDesktop Dispenser
- PACKAGE QUANTITY1
- MANUFACTURERS PART NUMBERZCM1000NS
- MODELZCM1000NS
- ACCESSORYZCM1000P026, ZCM1000P110, ZCM1000P254, ZCM1000P550E, ZFOOTSWITCH
- LOAD TYPETop
- TAPE MAX WIDTH INCHES2
- TAPE MIN WIDTH INCHES1/4
- FRAME CONSTRUCTIONSteel
- BLADE CONSTRUCTIONHard-Coated Steel
- TAPE MIN LENGTH INCHES3/4
- TAPE MAX LENGTH INCHES39
- STYLEElectric
Additional Information
- UNSPSC: 44121605
- Brand: Start International
- Color: Black
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: TX
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 11.00
- Package Width: 7.00
- Package Height: 8.00
- Package Weight: 7.00
Product info last updated on May 7, 2024 11:24pm UTC
Category: Packing Equipment
