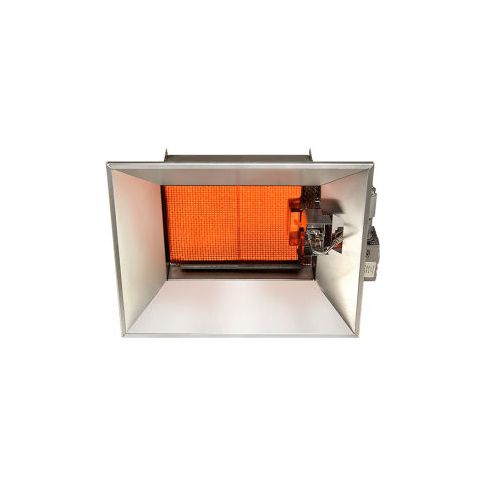

SunStar SGM Series Propane Infrared Heater 26000 BTU SGM3-L1
SunStar SGM Series Propane Infrared Heater 26000 BTU SGM3-L1 Apply for Trade Credit & Tax Exempt Purchases. Start Shopping Today. Free Shipping.
This item is NOT returnable.
GAS INFRARED CERAMIC HEATERS
Millivolt Standing Pilot Heater Propane Gas
Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Millivolt Standing Pilot Heaters do not require electrical power and operate with 100% gas shut-off safety control. Allows horizontal or angle mounting. Includes protective radiant screen. CSA certified. 1 Year Limited Warranty.
Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI Z223.I (also known as NFPA 54) or CGA B149 installation codes. Requires 4CFM per 1000 BTU/hr of Mechanical Ventilation of the total installed capacity. Read Installation and Operating Instructions prior to purchase. Not certified or approved for RESIDENTIAL use.
Millivolt Standing Pilot Heater Propane Gas
Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Millivolt Standing Pilot Heaters do not require electrical power and operate with 100% gas shut-off safety control. Allows horizontal or angle mounting. Includes protective radiant screen. CSA certified. 1 Year Limited Warranty.
Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI Z223.I (also known as NFPA 54) or CGA B149 installation codes. Requires 4CFM per 1000 BTU/hr of Mechanical Ventilation of the total installed capacity. Read Installation and Operating Instructions prior to purchase. Not certified or approved for RESIDENTIAL use.
Product Specifications
- BRANDSunStar®
- WIDTH INCHES20
- DEPTH INCHES16-3/4
- HEIGHT INCHES9-3/4
- CONNECTION SIZE INCHES1/2
- MIN. CLEARANCE TO COMBUSTIBLE 30 DEGREE ANGLE INCHBack 8, Side 24, Ceiling 32, Below 48
- MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHBack 24, Side 24, Ceiling 24, Below 48
- ASSEMBLYAssembled
- CONSTRUCTIONAluminized Steel / Aluminum Reflectors
- BTU HIGH26000
- BURNER PRESSURE W.C. INCHES10
- GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
- GAS INLET PRESSURE MIN. WATER COLUMN INCHES11
- FUEL TYPEPropane
- IGNITION TYPEMillivolt Standing Pilot
- LIMITED WARRANTY YEARS1
- MANUFACTURER PART NUMBERSGM3-L1
- MILLIVOLT (mV)750
- CONNECTION TYPENPT Female
Additional Information
- UNSPSC: 40101819
- Brand: Sunstar Heating Products Inc
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NC
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 29.00
- Package Width: 22.00
- Package Height: 12.00
- Package Weight: 25.00
Product info last updated on September 23, 2024 2:48pm UTC
Category: Gas and Oil Heaters
