SunStar SG Series Natural Gas Infrared Heater 40000 BTU SG4-N
SunStar SG Series Natural Gas Infrared Heater 40000 BTU SG4-N One-stop Shopping for all Government Buyers. Track Spending. Government Pricing.
This item is NOT returnable.

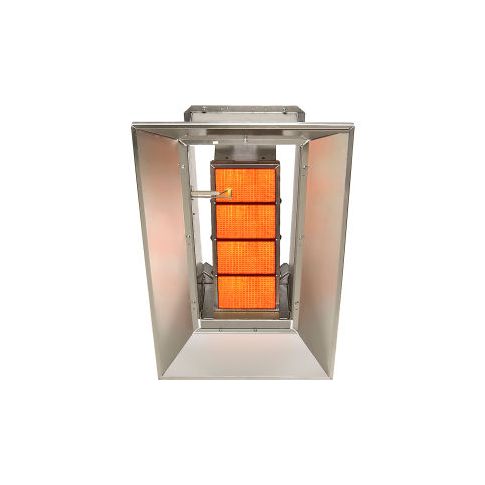

SunStar Natural Gas Heater Infrared Ceramic SG4-N - 40000 BTU
Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Features energy efficient direct spark ignition system and gas shut-off safety control. Allows angled mounting up to 30°. 120V supply required. CSA certified. 1 Year Limited Warranty.
Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI Z223.I (also known as NFPA 54) or CGA B149 installation codes. Requires 4CFM per 1000 BTU/hr of Mechanical Ventilation of the total installed capacity. Read Installation and Operating Instructions prior to purchase. Not certified or approved for RESIDENTIAL use.
Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Features energy efficient direct spark ignition system and gas shut-off safety control. Allows angled mounting up to 30°. 120V supply required. CSA certified. 1 Year Limited Warranty.
Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI Z223.I (also known as NFPA 54) or CGA B149 installation codes. Requires 4CFM per 1000 BTU/hr of Mechanical Ventilation of the total installed capacity. Read Installation and Operating Instructions prior to purchase. Not certified or approved for RESIDENTIAL use.
Product Specifications
- BRANDSunStar®
- WIDTH INCHES26-1/2
- DEPTH INCHES17-3/4
- HEIGHT INCHES7-3/4
- CONNECTION SIZE INCHES1/2
- MIN. CLEARANCE TO COMBUSTIBLE 30 DEGREE ANGLE INCHFront 37, Rear 31, Below 73
- MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHSides 31, Ceiling 37, Below 73
- ASSEMBLYAssembled
- CONSTRUCTIONAluminized Steel / Aluminum Reflectors
- BTU HIGH40000
- BURNER PRESSURE W.C. INCHES6
- VOLTAGE120
- GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
- GAS INLET PRESSURE MIN. WATER COLUMN INCHES7
- NUMBER OF BURNERS1
- FUEL TYPENatural Gas
- IGNITION TYPEDirect Spark
- LIMITED WARRANTY YEARS1
- MANUFACTURER PART NUMBERSG4-N
- AMPS HIGH0.4
- CONNECTION TYPENPT Female
Additional Information
- UNSPSC: 40101819
- Brand: Sunstar Heating Products Inc
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NC
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 23.00
- Package Width: 31.00
- Package Height: 11.00
- Package Weight: 34.00
Product info last updated on September 23, 2024 2:48pm UTC
Category: Gas and Oil Heaters
