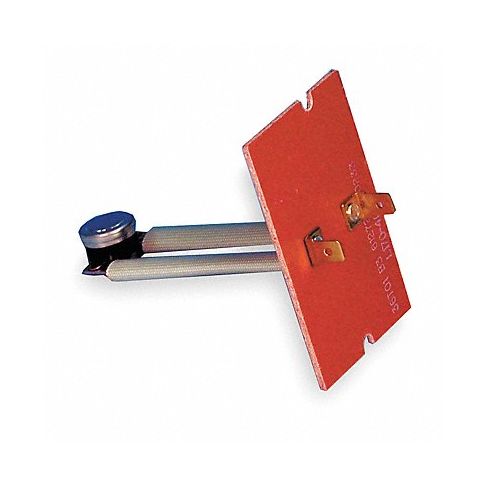

Thermostat Limit Plenum Range 170-130F MPN:SHL513

The Supco® SHL series limit control thermostat offers proven reliability in a compact, versatile, cost-effective design. The 1/2" bimetal temperature control is a direct OEM replacement. Pilot-duty rated. Fixed temperature, auto reset. Resistive amps: 15 at 120V; 10 at 240V. Voltage: 120/240/480.
UL Recognized. UL Listed. CSA Certified.

Technical Specifications

• Item Limit Control
• Type Fixed Temp, Auto Reset Plenum Mount
• Switch Action Open On Rise
• Switch Type SPST
• Element Type Insertion
• Element Insertion Length (In.) 3 1/8 in
• Height (In.) 2 7/8 in
• Width (In.) 1 7/8 in
• Circuit #1 Switch Closes @ (F) 130 Degrees F
• Circuit #1 Switch Opens @ (F) 170 Degrees F
• Differential 40 Degrees F
• Inductive Amps @ 120V 3
• Inductive Amps @ 240V 1.5
• Resistive Amps @ 120V 15
• Resistive Rating 240V 10
• Voltage Range 120/240/480
• Switch Closes @ (F) 130 Degrees F
• Switch Opens @ (F) 170 Degrees F

Manufacturer Details

• Manufacturer: Supco
• Condensed Mfg Number: SHL513
• MPN: SHL513

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032100060
• GDS Category Name: Fan and Limit Controls
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112209
• UNSPSC Class ID: 22
• UNSPSC Commodity Name: Temperature and heat measuring instruments
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Thermostats
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
