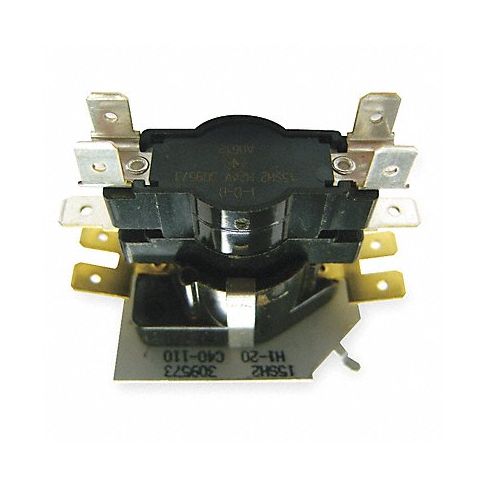

Sequencer Number of Switches 3 1-110 Sec MPN:Q105
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-2FBW1
Sequencer Number of Switches 3 1-110 Sec
The sequencer features an impressive count of 3 switches, making it suitable for simple yet precise timing applications; this accessory comes equipped with the ability to control delays between sequences thus allowing customers the convenience to set varying on and off time intervals. This product guarantees precision timings, ideal for industries such as lighting systems, appliances or show displays requiring specific duration timers while guaranteeing customer satisfaction through reliability and accuracy during use; the ability to control time durations promotes effortless usage in a range of applications translating into cost-effective solutions among consumers seeking efficient yet precise timing devices.
The Supco® electric sequencer provides fast (snap-disc) or time-delayed (electric) control of startup and shutdown sequences. Use a direct replacement for most fan and heat sequencing functions. Contacts designated M1–M2 of a multi timing sequencer will turn on first and turn off last. 5-second delay between all subsequent stages, unless they function together. Field proven for controlling the operation of heating elements and or blower motors in electric, gas or oil heat systems. UL Listed. CSA Approved.
Technical Specifications
- Item Electric Sequencer
- Type Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
- Number of Switches 3
- Main Switch On Time (Sec.) 1 to 110
- Main Switch Off Time (Sec.) 1 to 110
- Number of Timings 2
- Height (In.) 1 7/8 in
- Width (In.) 3 1/4 in
- Depth (In.) 2 in
- Resistive Amps @ 120V 25
- Resistive Amps @ 240V 25
- Full Load Amps @ 120VAC 14
- Full Load Amps @ 240VAC 7
- Full Load Amps @ 480V 3
- Therm-o-Disc Model No. 15SH21309575
- Aux. Switch Off Time (Sec.) 1 to 110
- Aux. Switch On Time (Sec.) 1 to 110
- Locked Rotor Amps @ 120V 72
- Locked Rotor Amps @ 240V 42
- Locked Rotor Amps @ 480V 18
- Off Time (Seconds) 1 to 110
- On Time (Seconds) 1 to 110
- Control Volts 24
- Pilot Duty 120/480V (VA) 125
- Resistive Amps @ 480V 12.5
- Includes Double Quick-Connect Terminals For Combination Loads
Manufacturer Details
- Manufacturer: Supco
- Condensed Mfg Number: Q105
- MPN: Q105
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536308000
- GDS Category Name: Sequencers
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 39121510
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Controller switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 4:33pm UTC
Category: HVAC Controls and Thermostats
