Ceramic Terminal Block 1-1/4x1-9/16 in. MPN:EHD-108-101
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2LRT9

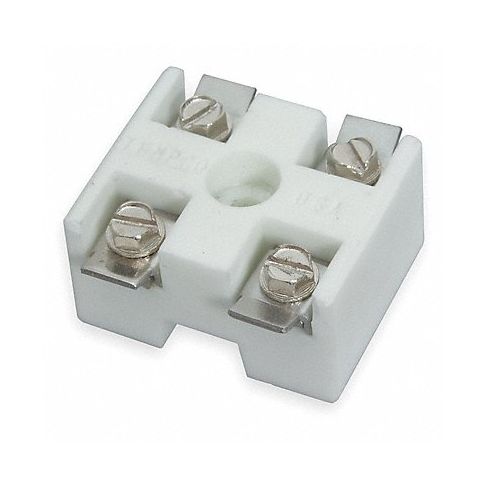

Ceramic Terminal Block 1-1/4x1-9/16 in.
The Ceramic Terminal Block by Tempco is an ideal solution for heater power and thermocouple wiring in high-temperature locations such as HVAC and refrigeration systems. Its compact size of 1 1/4 x 1 9/16 inches and direct mount feature make it easy to install into assemblies. The terminal block's durable ceramic construction ensures maximum reliability in high-temperature environments, with a max temperature rating of 450C or 842F. With a max amperage of 20 amps, this terminal block is perfect for a range of applications, providing the convenience and safety of organized wiring for HVAC and refrigeration systems.
Top product features:
- Direct mount for easy installation
- High-temperature ceramic construction for maximum reliability
- Compact size for organized wiring in HVAC and refrigeration systems
Top product applications:
- Heater power wiring in high-temperature HVAC systems
- Thermocouple wiring in industrial refrigeration equipment
- Organized wiring and terminal management in high-temp applications
Use for heater power and thermocouple wiring in high-temperature locations. Direct mount into assembly. Max. amps: 20; max. temperature: 450°C and 842°F. AWG 20-12 wire gauge.
Technical Specifications
- Item Ceramic Terminal Block
- Block Type High Temperature 2-Pole
- Heater Voltage 600V AC
- Length 1 1/4 in
- Width 1 9/16 in
- Height 27/32 in
- For Use With 2LRN8, 2LRN9, 2LRP1, 2LRP2, 2LRP3, 2LRP4, 2LRP5, 2LRP6, 2LRP7, 2LRP8, 2LRP9, 2LRR1, 2LRR2, 2LRR3, 2LRR4, 2LRR5, 2LRR6, 2LRR7, 2LRR8, 2LRR9
- Includes Mounting Screws
Manufacturer Details
- Manufacturer: Tempco
- Condensed Mfg Number: EHD108101
- MPN: EHD-108-101
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536904000
- GDS Category Name: Process Heater Element Accessories
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101830
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Heater elements
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 25, 2024 1:01pm UTC
Category: Electric Process Heaters and Accessories
