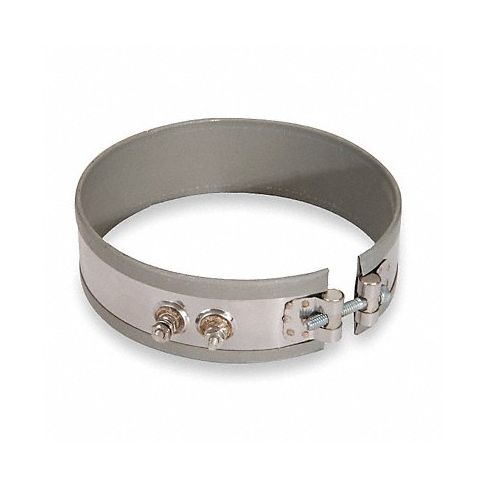

Band Heater 240V 5 in Dia 900 Deg F MPN:MBH20543
Band Heater 240V 5 in Dia. 900 Deg F
A band heater is a resistance heating element comprised of a metal ribbon wrapped around a core material, available in varying widths and lengths to accommodate various applications, capable of providing consistent heat over its entire surface. It operates at 240 volts which can provide uniform temperature distribution crucial for processes such as annealing or heat treatment with efficiency while avoiding hotspots or cool spots that may affect material quality. For HVAC and refrigeration industries, band heaters ensure evenly maintained temperatures critical for productivity, precision and safety of both personnel and equipment in operation within these settings.
Mica sheet insulates the heater windings. Model features 10-32 screw terminals, same side.
Technical Specifications
- Item Band Heater
- Heater Voltage 240V AC
- Inside Dia. 5 in
- Width 1 1/2 in
- Material Mica Insulated Steel
- Max. Temp. 900 Degrees F
- Terminals Same Side
- Termination 10 to 32 Screw Terminal
- Watts 700 W
- Watt Density 32 sq in
- Amps 2.92 A
- Width Tolerance +/-1/16 in
- Features Built-in Low Thermal Expansion Strap
Manufacturer Details
- Manufacturer: Tempco
- Condensed Mfg Number: MBH20543
- MPN: MBH20543
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8419899585
- GDS Category Name: Band Heaters
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101829
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Band heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: Electric Process Heaters and Accessories
