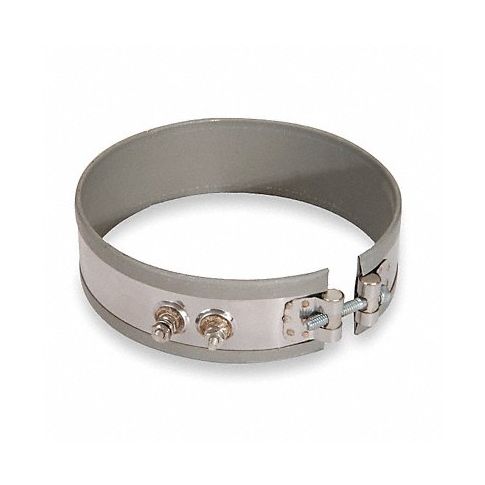

Band Heater 120V 5 in Dia 900 Deg F MPN:MBH20544
Band Heater 120V 5 in Dia. 900 Deg F
A versatile electric band heater that offers consistent heat generation up to a temperature of 900F (475C) while operating at only 120 Volts power supply, this 5 in diameter x 1/8 thick piece comes with built-in thermostat for easy heat regulation and features excellent insulation for efficiency. It can be applied across numerous industrial processes involving bending or shaping materials, such as pipe bending machines, hydraulic presses, roll forming machines, and rubber vulcanization equipment where precise heating of work pieces is paramount to attain top-quality finished products.
Mica sheet insulates the heater windings. Model features 10-32 screw terminals, same side.
Technical Specifications
- Item Band Heater
- Heater Voltage 120V AC
- Inside Dia. 5 in
- Width 1 1/2 in
- Material Mica Insulated Steel
- Max. Temp. 900 Degrees F
- Terminals Same Side
- Termination 10 to 32 Screw Terminal
- Watts 700 W
- Watt Density 32 sq in
- Amps 5.83 A
- Width Tolerance +/-1/16 in
- Features Built-in Low Thermal Expansion Strap
Manufacturer Details
- Manufacturer: Tempco
- Condensed Mfg Number: MBH20544
- MPN: MBH20544
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516808000
- GDS Category Name: Band Heaters
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101829
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Band heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
