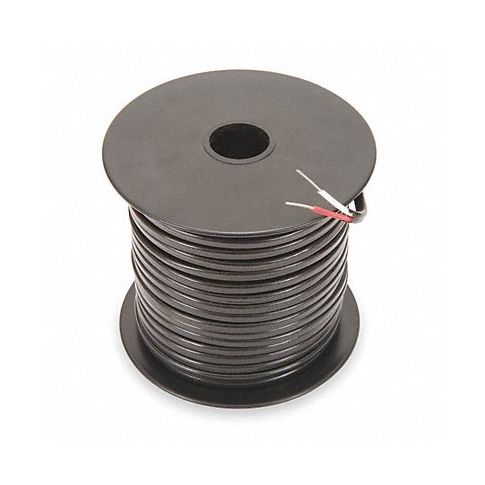

Thermocouple Ext Wire JX 20AWG Blk 250ft MPN:TCWR-1009

Thermocouple extension wire is a flexible, insulated wire used to extend a thermocouple signal from a probe back to the instrument reading the signal. It works accurately over a narrower temperature range than thermocouple wire and can't be used in the sensing point (or probe part) of the thermocouple. It is typically used as an extension to a measuring instrument over long distances.

Thermocouple wire and cable are types of flexible, insulated wire that sense the temperature of an object and feed that information to a temperature control device or to a temperature measuring or monitoring device. They can also be used to create the sensing point (or probe) in a thermocouple. They are commonly used to maintain or monitor a component's temperature in industrial processes where high heat is present, such as kilns, gas turbine exhaust, or diesel engines. They are also used in safety devices, such as flame sensors in gas-powered appliances.

Technical Specifications

• Item Thermocouple Extension Wire
• Number of Conductors 2
• Wire Size 20 AWG
• Insulation Material PVC
• Trade Designation JX
• Jacket Color Black
• Conductor Design Solid
• Length 250 ft
• Temp. Rating 221 Degrees F
• Color Code White Positive/Red Negative

Manufacturer Details

• Manufacturer: Tempco
• Condensed Mfg Number: TCWR1009
• MPN: TCWR-1009

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8544499000
• GDS Category Name: Thermocouple Wire
• GDS Family Name: Wire and Cable
• GDS Segment Name: Electrical
• UNSPSC: 41112206
• UNSPSC Class ID: 22
• UNSPSC Commodity Name: Temperature and heat measuring instruments
• UNSPSC Commodity ID: 06
• UNSPSC Commodity Name: Thermocouples
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
