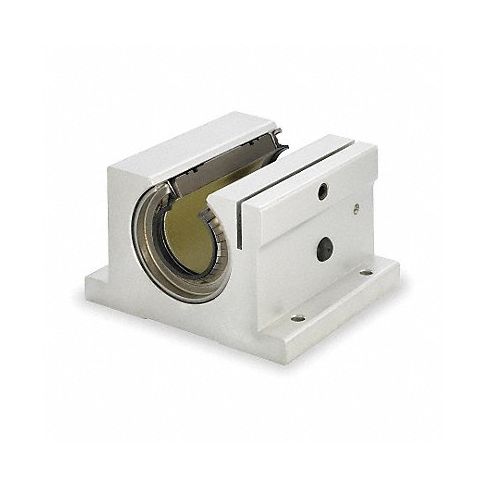

Pillow Block 0.625 In Bore 1.940 In L MPN:FNYBUPBO10ALS
The Pillow Block is an essential component in linear motion systems used to support shafts while reducing vibration and accommodating misalignment. With a bore size of 0.625 inches, it offers enough surface area to handle significant load-carrying capacities while its one-piece cast iron construction ensures durability and resistance against wear. Its compatibility with various mounting options offers versatility in installation. In addition to reducing vibration and absorbing shock, the self-lubricating properties of the pillow block minimize friction and prolong the life of shaft components. Due to its excellent performance and cost-effectiveness, the Pillow Block is an ideal solution for various industries including automotive, manufacturing, agriculture, and construction where smooth operation and reliability are essential.
Technical Specifications
- Item Linear Pillow Block Bearing
- Type Open
- Bore Dia. (In.) 0.625 in
- Overall Width (In.) 2.5 in
- Overall Length (In.) 1.94 in
- Overall Height (In.) 1.63 in
- Body Width (In.) 1.75 in
- Flange Thickness (In.) 0.28 in
- Mounting Surface to Shaft Center (In.) 0.875 in
- Mounting Hole Center (In.) 2.125 in
- Mounting Hole Dia. (In.) 0.19 in
- Bolt Size #8
- Slot Angle (Degrees) 30
- Self-Alignment All Direction
- Static Load Capacity (Lb.) 1,450
- Max. Pv 10,000 lb/sq in-fpm
- Steady State Speed - Continuous Dry 140 fpm
- Steady State Speed - Intermittent Dry 400 fpm
- Temp. Range (F) -400 - 550
- Locking Type Setscrew
- Bearing Type FlouroNyliner
- Liner TEP 950
- Lubrication No Lubrication System
- Material Aluminum
- Color Silver
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: FNYBUPBO10ALS
- MPN: FNYBUPBO10ALS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
