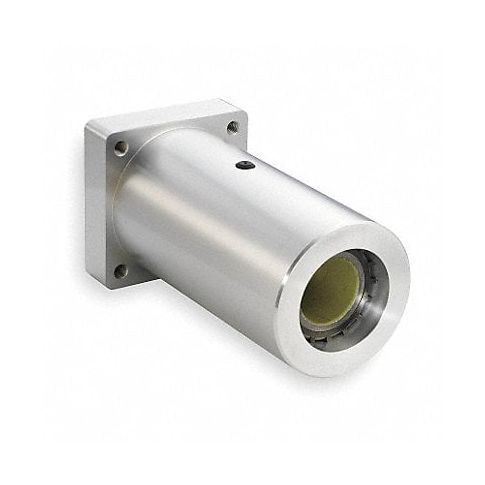

Pillow Block 1.000 In Bore 5.330 In L MPN:FNYBUTFB16LLS
Titan USA's Pillow Block 1.000in Bore 5.330in L is engineered to provide versatile support for diverse industries from food processing lines, textiles mills and paper manufacturing to packaging facilities. It offers excellent shock-loading resistance, noise reduction abilities while minimizing wear on adjacent machinery due to its lubrication-free sleeve bushing design made out of case carburized steel for maximum hardness ensuring years of reliable service even under the toughest conditions. Able to carry heavy loads, this durable cast iron component guarantees ease of installation alongside long life expectancy with simple assembly and disassembly without disturbing adjacent components in its path. Titan USA stands behind this high quality product as an effective solution for your industrial machinery's motion control needs; saving both time and money while guaranteeing smooth operations 24/7!
Technical Specifications
- Item Linear Pillow Block Bearing
- Type Closed, Twin Flange
- Bore Dia. (In.) 1 in
- Overall Width (In.) 2.75 in
- Overall Length (In.) 5.33 in
- Overall Height (In.) 2.75 in
- Body Width (In.) 2.75 in
- Flange Dia. (In.) 2.750 x 2.750
- Flange Thickness (In.) 0.5 in
- Barrel Dia. (In.) 2.25 in
- Mounting Hole Center (In.) 2.125 in
- Mounting Hole Dia. (In.) 0.28 in
- Self-Alignment All Direction
- Static Load Capacity (Lb.) 7,000
- Max. Pv 10,000 lb/sq in-fpm
- Steady State Speed - Continuous Dry 140 fpm
- Steady State Speed - Intermittent Dry 400 fpm
- Temp. Range (F) -400 - 550
- Locking Type Setscrew
- Bearing Type FlouroNyliner
- Liner TEP 950
- Lubrication No Lubrication System
- Material Aluminum
- Color Silver
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: FNYBUTFB16LLS
- MPN: FNYBUTFB16LLS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
