4 Bolt Flng Brg Radial 1 7/16in Bore MPN:RCJ 1 7/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R447

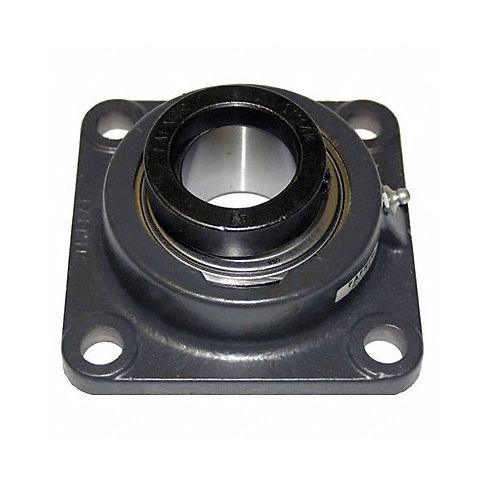

4 Bolt Flng Brg Radial 1 7/16in Bore
Boost your machinery's performance with our premium-quality 4-Bolt Flange Bearings from Timken. Ideal for use in a variety of applications across industries such as agriculture, construction, and manufacturing, this bearing features a sturdy design with a bore diameter of 1 7/16 inches. Its innovative ball insert provides maximum stability and support while also minimizing friction. Equipped with an eccentric locking collar, these bearings ensure easy installation and secure locking to prevent slippage during use. Say goodbye to costly maintenance costs and prolong the life of your machinery by using this reliable Timken 4-Bolt Flange Bearing. Invest in quality now!
Top product features:
- Sturdy Design Ensuring maximum stability and support
- Bore Dia. of 1 7/16 inches for precise fit and performance
- Eccentric Locking Collar for easy installation and secure locking
Top product applications:
- Agriculture machinery such as combines and tractors
- Construction equipment like excavators and cranes
- Manufacturing machinery for conveyors and gears
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Timken item #RCJ 1 7/16.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/16 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 5/8 in
- Series RCJ
- Bolt Size 1/2 in
- Overall Height 2 3/32 in
- Overall Width 4 5/8 in
- Overall Length 4 5/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 6,400 lb
- Static Load Capacity 3,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 3 5/8 in
- Dimension B 4 5/8 in
- Dimension C 1/2 in
- Dimension D 1 1/2 in
- Dimension E 2 11/64 in
- Dimension E Max. 2 7/64 in
- Dimension F 2 in
- Dimension G 2 3/16 in
- Dimension J 3 5/8 in
- Dimension L 4 5/8 in
- Dimension N 33/64 in
- Dimension S 1 9/32 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJ1716
- MPN: RCJ 1 7/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00H515H5A
Product info last updated on October 13, 2023 5:40pm UTC Category: Bearings
