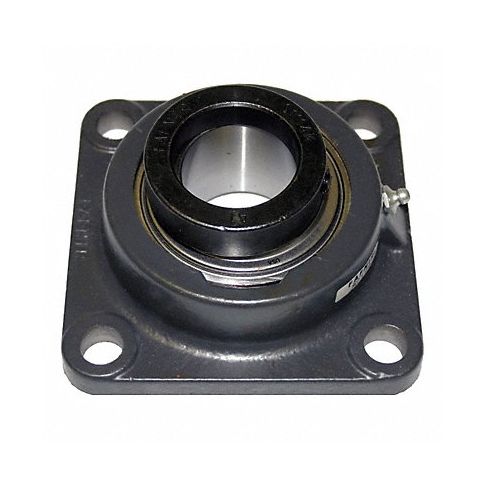

4 Bolt Flng Brg Radial Ball 1 7/8in Bore MPN:RCJ 1 7/8

Technical Specifications

• Item 4-Bolt Flange Bearing
• Mounted Bearing Item 4-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 1 7/8 in
• Shaft Locking Type Eccentric Locking Collar
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 4 3/8 in
• Series RCJ
• Bolt Size 5/8 in
• Overall Height 2 19/32 in
• Overall Width 5 5/8 in
• Overall Length 5 5/8 in
• Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
• Dynamic Load Capacity 8,800 lb
• Static Load Capacity 5,100 lb
• Temp. Range -65 Degrees to 200 Degrees F
• Finish Powder Coated
• Dimension A 4 3/8 in
• Dimension B 5 5/8 in
• Dimension C 5/8 in
• Dimension D 1 13/16 in
• Dimension E 2 41/64 in
• Dimension E Max. 2 5/8 in
• Dimension F 2 13/32 in
• Dimension G 2 3/4 in
• Dimension J 4 3/8 in
• Dimension L 5 3/8 in
• Dimension N 43/64 in

Manufacturer Details

• Manufacturer: Timken
• Condensed Mfg Number: RCJ178
• MPN: RCJ 1 7/8

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
