4 Bolt Flange Brg Radial Ball 1/2in Bore MPN:RCJ 1/2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R449

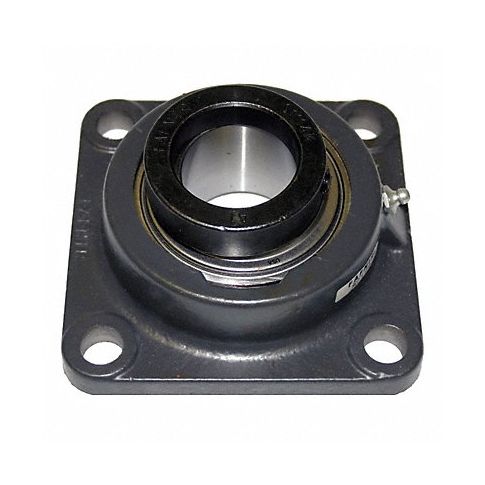

4 Bolt Flange Brg Radial Ball 1/2in Bore
Upgrade your power transmission system with Timken's 4-Bolt Flange Bearing with a 1/2-inch bore size. Engineered for heavy-duty usage, this bearing ensures smooth operation in a wide range of industries and applications. With its sturdy construction made from high-quality materials, you can rely on the RCJ 1/2 to provide exceptional performance and durability. Easily install the bearing using the four mounting bolts and experience reduced downtime and maintenance costs. Additionally, it features an eccentric locking collar for increased stability. Built to withstand demanding conditions, Timken's 4-Bolt Flange Bearing offers unbeatable performance and value. Get your RCJ 1/2 today and see the difference in your power transmission system!
Top product features:
- Durable construction ensures longevity and reliability even under demanding conditions.
- 4-Bolt Flange design allows for easy installation and removal without disturbing the machine setup.
- Eccentric locking collar provides stability during operation, reducing wobble or play in the system.
Top product applications:
- Industrial machinery for smooth operation in large scale manufacturing, material handling and processing systems.
- Agricultural equipment for reduction of vibration and noise for stable performance in farming equipment like combine harvesters and tractors.
- Heavy-duty construction vehicles to handle high radial loads during operation such as excavators and cranes.
✓ Buy Timken item #RCJ 1/2 and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1/2 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 1/8 in
- Series RCJ
- Bolt Size 3/8 in
- Overall Height 1 37/64 in
- Overall Width 3 in
- Overall Length 3 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 2,400 lb
- Static Load Capacity 1,060 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 1/32 in
- Dimension E 1 37/64 in
- Dimension J 2 1/8 in
- Dimension N 27/64 in
- Dimension S 59/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJ12
- MPN: RCJ 1/2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
