2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:RCJT 1 1/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxo-46r461

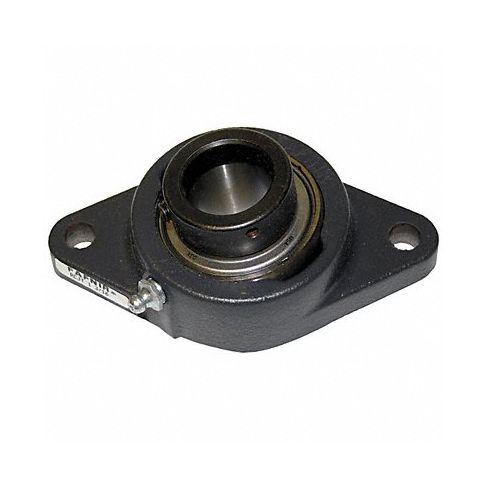

2 Bolt Flng Brg Radial Ball 1 1/4in Bore
Introducing our 2-bolt flange bearing from Timken, specifically designed to meet the demands of a wide range of industrial and machinery applications. With its ball insert type construction, this high-quality bearing provides precise movement and superior load capacity while maintaining excellent accuracy and durability. Its temperature range of -40F to +450F ensures optimal performance in challenging environments. Plus, the eccentric locking collar allows for easy mounting and secure fastening. Use it in agriculture, construction or aerospace industries, and experience the difference that quality makes.
Top product features:
- Ball insert type construction provides precise movement and superior load capacity
- Temperature range of -40F to +450F ensures optimal performance in challenging environments
- Eccentric locking collar allows for easy mounting and secure fastening
Top product applications:
- Industrial machinery and equipment, such as conveyor belts, pulleys, and gears
- Agricultural machinery, such as harvesters and irrigation systems
- Aerospace applications, such as turbines and jet engines
Buy Timken item #RCJT 1 1/4 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series RCJT
- Bolt Size 1/2 in
- Overall Height 6 1/8 in
- Overall Width 2 3/32 in
- Overall Length 3 5/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 6,400 lb
- Static Load Capacity 3,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 11/32 in
- Dimension B 5 1/8 in
- Dimension C 3 5/8 in
- Dimension D 2 5/64 in
- Dimension E 2 3/32 in
- Dimension H 6 1/8 in
- Dimension J 5 1/8 in
- Dimension L 3 5/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJT114
- MPN: RCJT 1 1/4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
