2 Bolt Flng Brg Radial 1 11/16in Bore MPN:RCJT 1 11/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxo-46r463

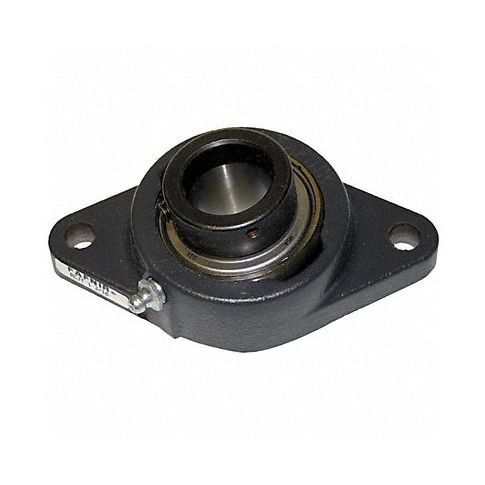

2 Bolt Flng Brg Radial 1 11/16in Bore
Introducing Timken's 2-Bolt Flange Bearing - designed for maximum performance and reliability in power transmission systems. This durable bearing provides efficient transfer of mechanical energy with its ball insert type construction. With a 1 11/16 inch bore diameter, it is easy to install and perfect for heavy-duty machinery applications. Equipped with an eccentric locking collar, the bearing ensures maximum locking strength and stability during operation. Made from high-quality materials, this product is built to last and meet all your power transmission needs. Don't settle for inferior products, choose Timken's 2-Bolt Flange Bearing today!
Top product features:
- Bearing insert type: Ball
- Eccentric locking collar for maximum locking strength and stability during operation
- Made from high-quality materials for durability and reliability
Top product applications:
- Power transmission systems in heavy-duty machinery and equipment
- Industrial equipment such as gearboxes and pulleys
- Material handling systems like conveyors and elevators
Get Timken item #RCJT 1 11/16 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 11/16 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 27/32 in
- Series RCJT
- Bolt Size 1/2 in
- Overall Height 7 1/16 in
- Overall Width 2 5/16 in
- Overall Length 4 3/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,150 lb
- Static Load Capacity 4,500 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 27/64 in
- Dimension B 5 53/64 in
- Dimension C 4 3/8 in
- Dimension D 2 5/16 in
- Dimension E 2 3/64 in
- Dimension H 7 1/16 in
- Dimension J 5 27/32 in
- Dimension L 4 3/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJT11116
- MPN: RCJT 1 11/16
