2 Bolt Flng Brg Radial Ball 1 3/4in Bore MPN:RCJT 1 3/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R466

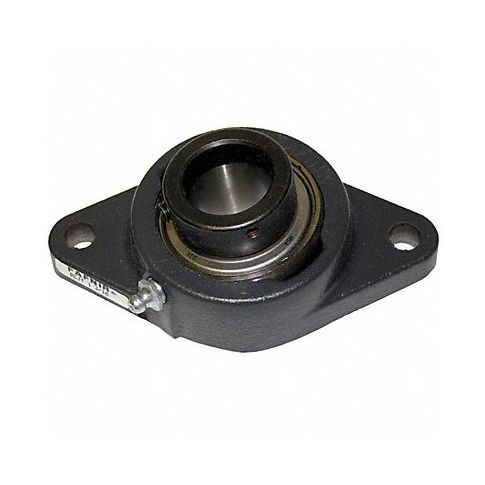

2 Bolt Flng Brg Radial Ball 1 3/4in Bore
The Timken 2 Bolt Flange Bearing is a high-quality and reliable bearing designed for demanding industrial and automotive applications. With a 1 3/4 inch bore diameter, this flanged ball bearing offers superior load capacity and durability, ensuring reduced friction and lower maintenance costs. Its two-bolt mounting design allows for easy installation and removal, making it suitable for both OEM and MRO operations. Available in radial and angular contact designs, this versatile bearing can be used in a wide range of applications, including agriculture, construction, mining, and material handling equipment. Order your Timken 2 Bolt Flange Bearing today and experience the power of superior performance!
Top product features:
- Flange mounting for easy installation and removal
- Radial ball bearing design for superior load capacity
- Eccentric locking collar for secure shaft retention
Top product applications:
- Industrial machinery applications requiring heavy load capacity and high precision movement
- Construction equipment such as excavators or bulldozers for ballast tilt and slew applications
- Agricultural and forestry machinery such as harvesters or planters for robust rotational motion
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Timken item #RCJT 1 3/4.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/4 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 27/32 in
- Series RCJT
- Bolt Size 1/2 in
- Overall Height 7 1/16 in
- Overall Width 2 5/16 in
- Overall Length 4 3/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,150 lb
- Static Load Capacity 4,500 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 17/32 in
- Dimension B 5 53/64 in
- Dimension C 4 3/8 in
- Dimension D 2 5/16 in
- Dimension E 2 5/16 in
- Dimension H 7 1/16 in
- Dimension J 5 53/64 in
- Dimension L 4 3/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJT134
- MPN: RCJT 1 3/4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
