2 Bolt Flng Brg Radial 1 7/16in Bore MPN:RCJT 1 7/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R469

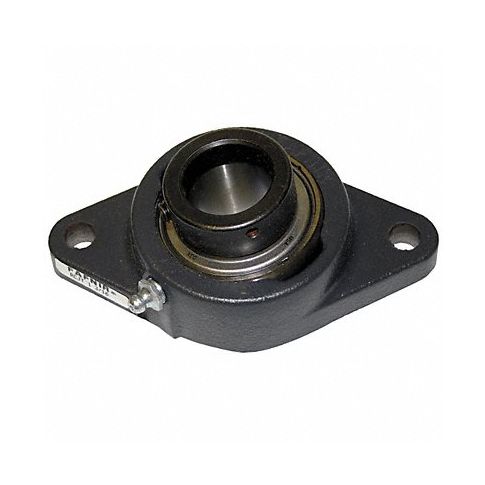

2 Bolt Flng Brg Radial 1 7/16in Bore
Introducing Timken's 2 Bolt Flange Bearing - Radial with a 1 7/16 inch bore, designed for Power Transmission applications that demand high performance and durability. This mounted bearing features sturdy ball bearings insert for superior load distribution, reduced wear, and increased stability. The eccentric locking collar ensures secure shaft locking, while the steel cage maximizes the bearing's contact with the raceways, providing superior accuracy. With its rugged construction and versatile design, this 2 Bolt Flange Bearing is perfect for applications in mining, construction, agriculture and more. Choose Timken, and choose quality, performance and reliability. Buy yours now!
Top product features:
- Rugged construction for durability and high performance in demanding applications.
- Steel cage maximizing contact with raceways providing superior accuracy.
- Eccentric locking collar ensuring secure shaft locking.
Top product applications:
- Industrial machinery and equipment where high-load capacity is required.
- Agriculture and construction equipment that demands accurate and durable bearing performance.
- Vehicles, such as trucks, buses and off-road vehicles for heavy duty transmissions and gearboxes.
Buy Timken item #RCJT 1 7/16 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/16 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series RCJT
- Bolt Size 1/2 in
- Overall Height 6 1/8 in
- Overall Width 2 3/32 in
- Overall Length 3 5/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 6,400 lb
- Static Load Capacity 3,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 11/32 in
- Dimension B 5 1/8 in
- Dimension C 3 5/8 in
- Dimension D 2 5/64 in
- Dimension E 2 3/32 in
- Dimension H 6 1/8 in
- Dimension J 5 1/8 in
- Dimension L 3 5/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJT1716
- MPN: RCJT 1 7/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
