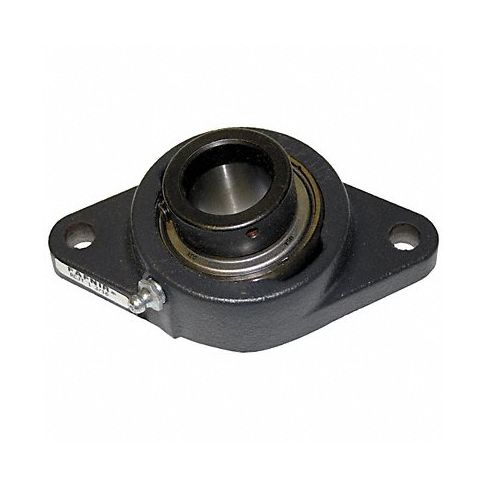

2 Bolt Flange Brg Radial Ball 3/4in Bore MPN:RCJT 3/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R474
2 Bolt Flange Brg Radial Ball 3/4in Bore
Timken's 2 Bolt Flange Bearing is designed to provide reliable power transmission in heavy-duty industrial applications. With its corrosion-resistant construction, this bearing can withstand tough operating environments, making it ideal for use in agricultural equipment, machine tools, and construction machinery. The 3/4 inch bore diameter allows for easy installation, while the eccentric locking collar provides added security to prevent loosening under high loads. With its versatile design, this bearing is a cost-effective solution that delivers superior performance and durability.
Top product features:
- Corrosion-resistant construction
- Easy installation due to 3/4 inch bore diameter
- Secure locking collar to prevent loosening under high loads
Top product applications:
- Agricultural machinery used in farm tractors, harvesters, and other equipment that requires reliable power transmission in tough conditions.
- Machine tools ideal for use in lathes, mills, grinders, and other metalworking machines where the bearing must support high radial loads while maintaining accuracy and repeatability.
- Construction machinery suitable for use in excavators, cranes, and other heavy-duty equipment that demands high load capacity and durability under demanding operating conditions.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Timken item #RCJT 3/4.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 17/32 in
- Series RCJT
- Bolt Size 3/8 in
- Overall Height 4 13/32 in
- Overall Width 1 51/64 in
- Overall Length 2 3/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 3,200 lb
- Static Load Capacity 1,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 3/32 in
- Dimension B 3 17/32 in
- Dimension C 2 3/8 in
- Dimension D 1 25/32 in
- Dimension E 1 51/64 in
- Dimension H 4 13/32 in
- Dimension J 3 17/32 in
- Dimension L 2 3/8 in
- Dimension N 27/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: RCJT34
- MPN: RCJT 3/4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B006MID7OK
Product info last updated on October 25, 2023 10:34am UTC Category: Bearings
