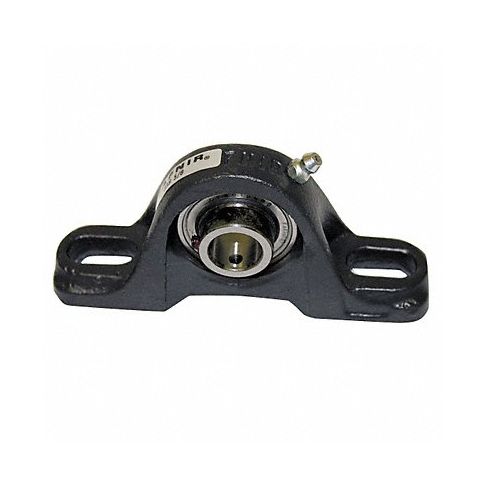

Pillow Block Brg 1 11/16in Bore Cst Iron MPN:SAS 1 11/16
Pillow Block Bearings' line of pillow block bearings, including their 1 1/16 bore construction made from cast iron material, offer various industries and users reliable bearing solutions for a wide range of applications. This particular model provides consistent performance in handling radial and axial loads as well as moments with its self-lubricating lubrication system allowing for low friction and reduced wear while providing a cost-effective solution compared to other materials like cast iron bearings on the market. Industries that benefit from this Pillow Block Bearing's use in equipment including construction, agriculture, automotive, textile, general machinery among others can expect longer operating life as well as simple mounting and dismounting with their attachment to the shaft via setscrews. Users will also appreciate its resistance against dust, dirt or moisture which translates into extended operation in demanding environments without compromising functionality.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 11/16 in
- Bolt Hole Center-to-Center 5 7/8 in
- Mounting Surface to Shaft Center 2 1/8 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series SAS
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 4 3/16 in
- Overall Width 2 in
- Overall Length 7 17/32 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,150 lb
- Static Load Capacity 4,500 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: SAS11116
- MPN: SAS 1 11/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
