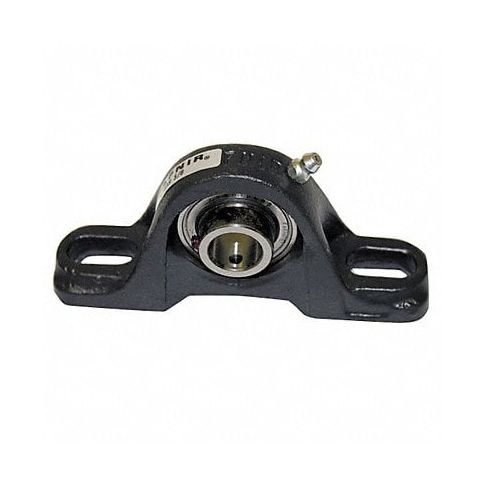

Pillow Block Bearing 2 in Bore Cast Iron MPN:SAS 2S
The Timken Pillow Block Bearing 2 in Bore Cast Iron is designed to offer exceptional performance for a wide range of industrial and agricultural machinery. With its durable cast iron housing, this bearing provides excellent support and stability under heavy loads while also offering a convenient means of mounting with four pre-drilled holes. The sealed design helps to keep out contaminants that can reduce the life of bearings, resulting in reduced maintenance requirements and lower long term costs. This pillow block bearing is particularly useful in applications such as agricultural equipment, conveyors, mining equipment, pumps and compressors. By providing superior load support, it can help to minimize wear and tear on other components, thereby increasing the overall efficiency of your machinery.
Top product features:
- Mounted bearing for easy installation and maintenance
- Cast iron housing for durability and stability under heavy loads
- Pre-drilled holes for convenient mounting and reduced downtime
Top product applications:
- Industrial and agricultural machinery for heavy duty load support and reduced downtime
- Conveyor systems to provide smooth operation and consistent performance
- Mining equipment for rugged terrain and harsh conditions
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 in
- Bolt Hole Center-to-Center 6 7/32 in
- Mounting Surface to Shaft Center 2 1/4 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series SAS
- Number of Bolts 2
- Bolt Size 5/8 in
- Overall Height 4 1/2 in
- Overall Width 2 3/16 in
- Overall Length 7 7/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,800 lb
- Static Load Capacity 5,100 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: SAS2S
- MPN: SAS 2S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC Category: Bearings
